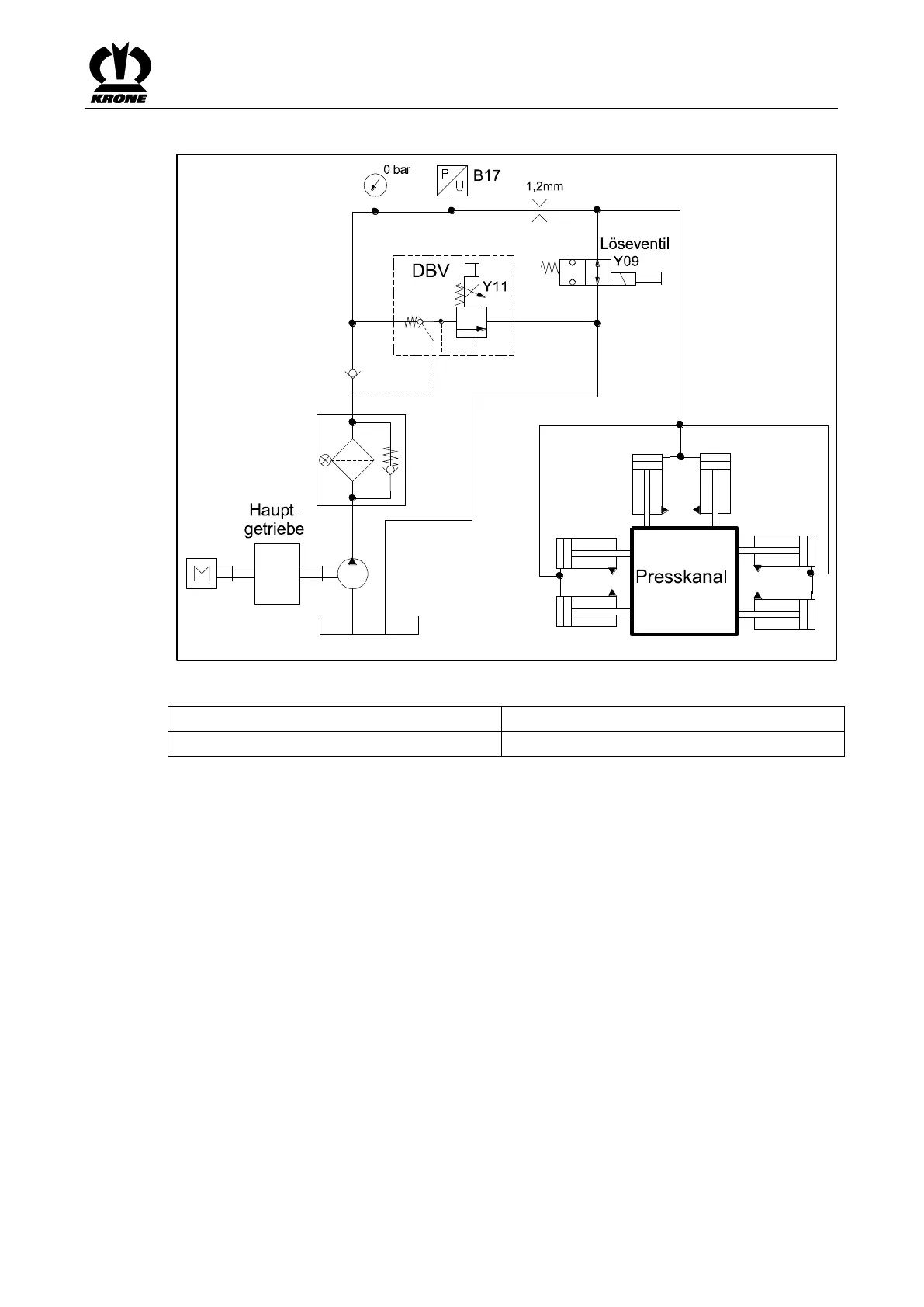

31.3 On-Board Hydraulic System for Comfort Version Electronics
1)
4)
3)
2)
Fig.
278
1. Main gearbox
2. Bale channel
3. Pressure limiting valve
4. Release valve
