Krone EasyCut F 320 - Folding down Safety Device Front

8 Operation
8.1 Safety device front
44 Original Operating Instructions 150000802_00_en

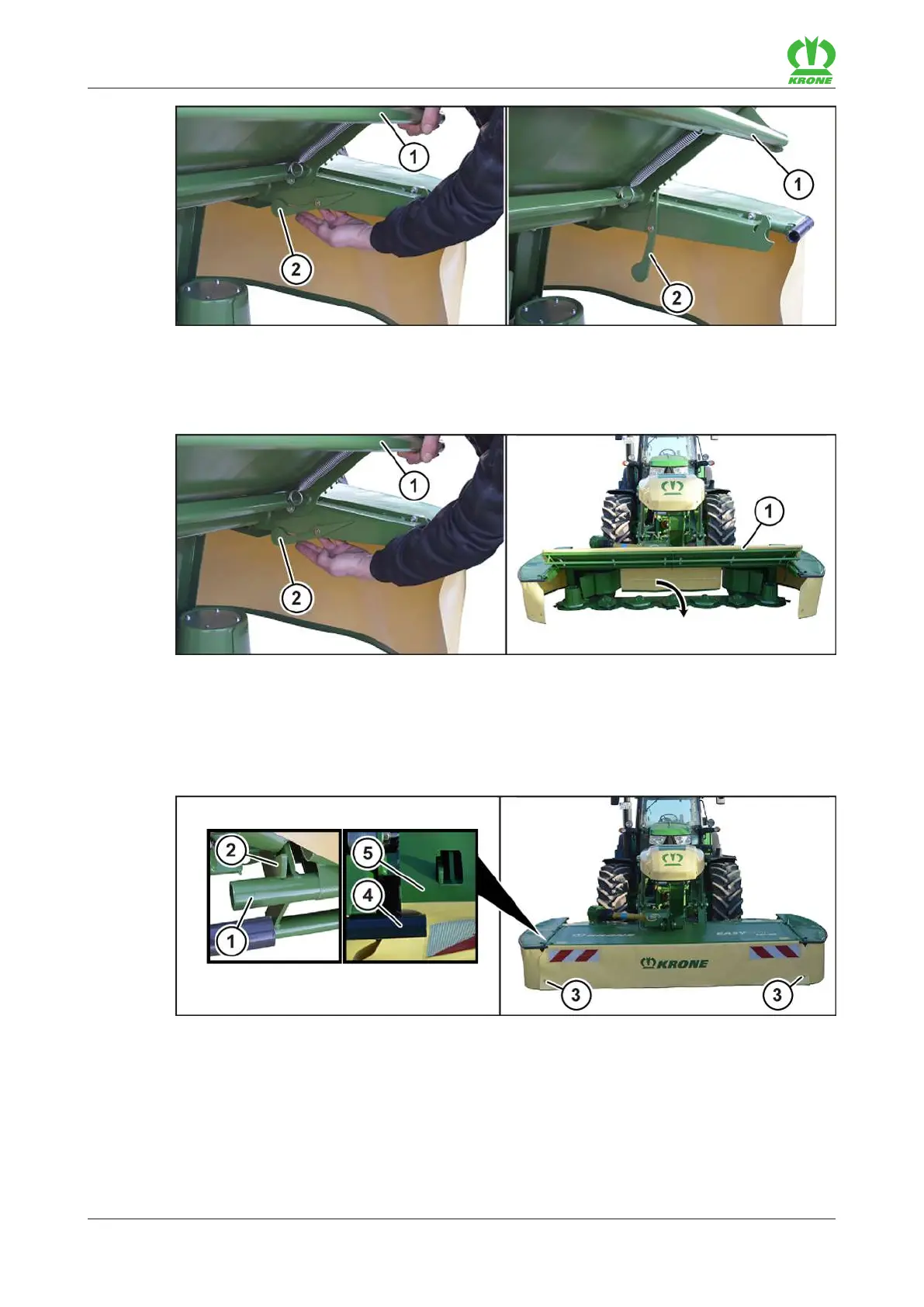

KM000-508
 Press the catch(2) to move the safety device(1) into the required position.
8.1.2 Folding down safety device front
KMG000-077
ü The machine is in the working position, refer to page46.
ü The machine is shut down and safeguarded, refer to page23.
 Loosen the catch (2).
 Fold down the safety device (1).
KMG000-082
 Ensure that the safety device(1) is engaged in the lock(2) on the right and left sides of the
machine.
 Ensure that the guard cloth(5) is positioned behind the side guard(4) on the right and left
sides of the machine.
 Close the turnlock fasteners(3).
