13 Maintenance - Gearbox
13.2 Mower gearbox
62 Original Operating Instructions 150000802_00_en

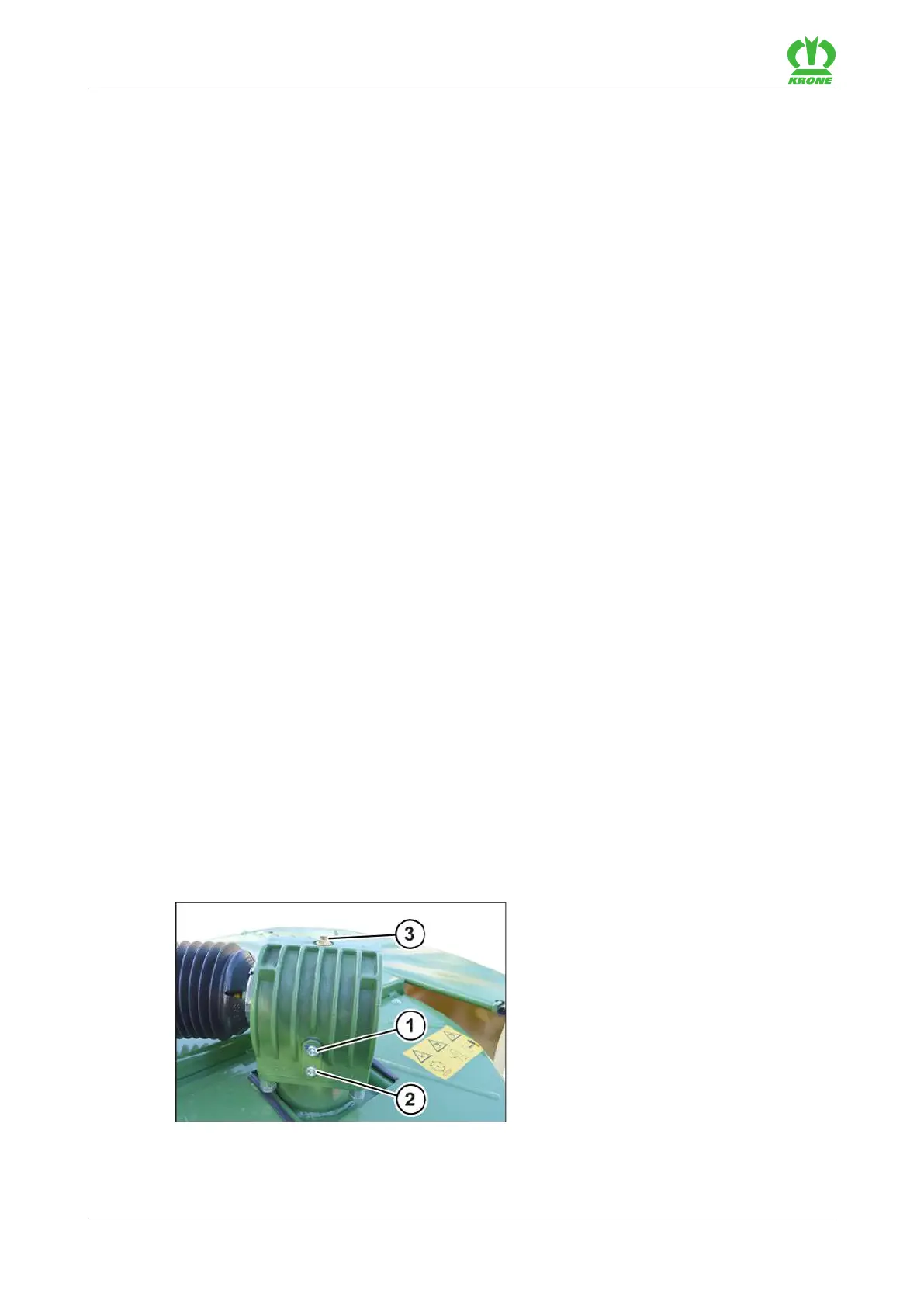

Checking oil level
Unscrew the locking screw of the inspection hole (1).
Æ If the oil reaches the inspection hole (1):
Mount the locking screw of the inspection hole (1), tightening torque refer to page57.
Æ If the oil does not reach the inspection hole (1):
Unscrew the locking screw of the filling hole (3).
Top up new oil via the filling hole (3) up to the inspection hole (1).
Mount the locking screw of the inspection hole (1) and the locking screw of the filling
hole (3), Tightening torque refer to page57.
Mount the guard (4).
Push the intermediate universal shaft(s) onto the main gearbox and secure it/them.
Secure the universal shaft guard(s) with the supporting chain(s) (5) against turning.
Change oil
ü A suitable container is available for escaping oil.
Loosen the supporting chain(s) (5).
Remove the intermediate universal shaft(s) from the main gearbox.
Dismount the guard (4).
Unscrew the locking screw from the inspection hole(1) and the locking screw from the filling
hole(3).
Unscrew the oil drain plug(2) and drain the oil.
Screw in the oil drain plug(2), tightening torque refer to page57.
Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
Screw the locking screw into the inspection hole(1) and the locking screw into the filling
hole(3), tightening torque refer to page57.
Mount the guard (4).
Push the intermediate universal shaft(s) onto the main gearbox and secure it/them.
Secure the universal shaft guard(s) with the supporting chain(s) (5) against turning.
13.2 Mower gearbox
KMG000-073
Observe the safety routine “Safely performing oil level check, oil change and filter element
change”, refer to page24.
