Maintenance - Gearbox 13
Oil change and oil level check on the cutterbar 13.3
Original Operating Instructions 150000802_00_en 63
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Checking oil level
Unscrew the locking screw of the inspection hole (1).
Æ If the oil reaches the inspection hole (1):
Mount the locking screw of the inspection hole (1), tightening torque refer to page57.
Æ If the oil does not reach the inspection hole (1):
Unscrew the locking screw of the filling hole (3).
Top up new oil via the filling hole (3) up to the inspection hole (1).
Mount the locking screw of the inspection hole (1) and the locking screw of the filling
hole (3), Tightening torque refer to page57.
Change oil
ü A suitable container is available for escaping oil.
Unscrew the locking screw from the inspection hole(1) and the locking screw from the filling
hole(3).
Unscrew the oil drain plug(2) and drain the oil.
Screw in the oil drain plug(2), tightening torque refer to page57.
Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
Screw the locking screw into the inspection hole(1) and the locking screw into the filling
hole(3), tightening torque refer to page57.
13.3 Oil change and oil level check on the cutterbar
Changing the oil
INFORMATION
There is no need to change the oil on the cutterbar.

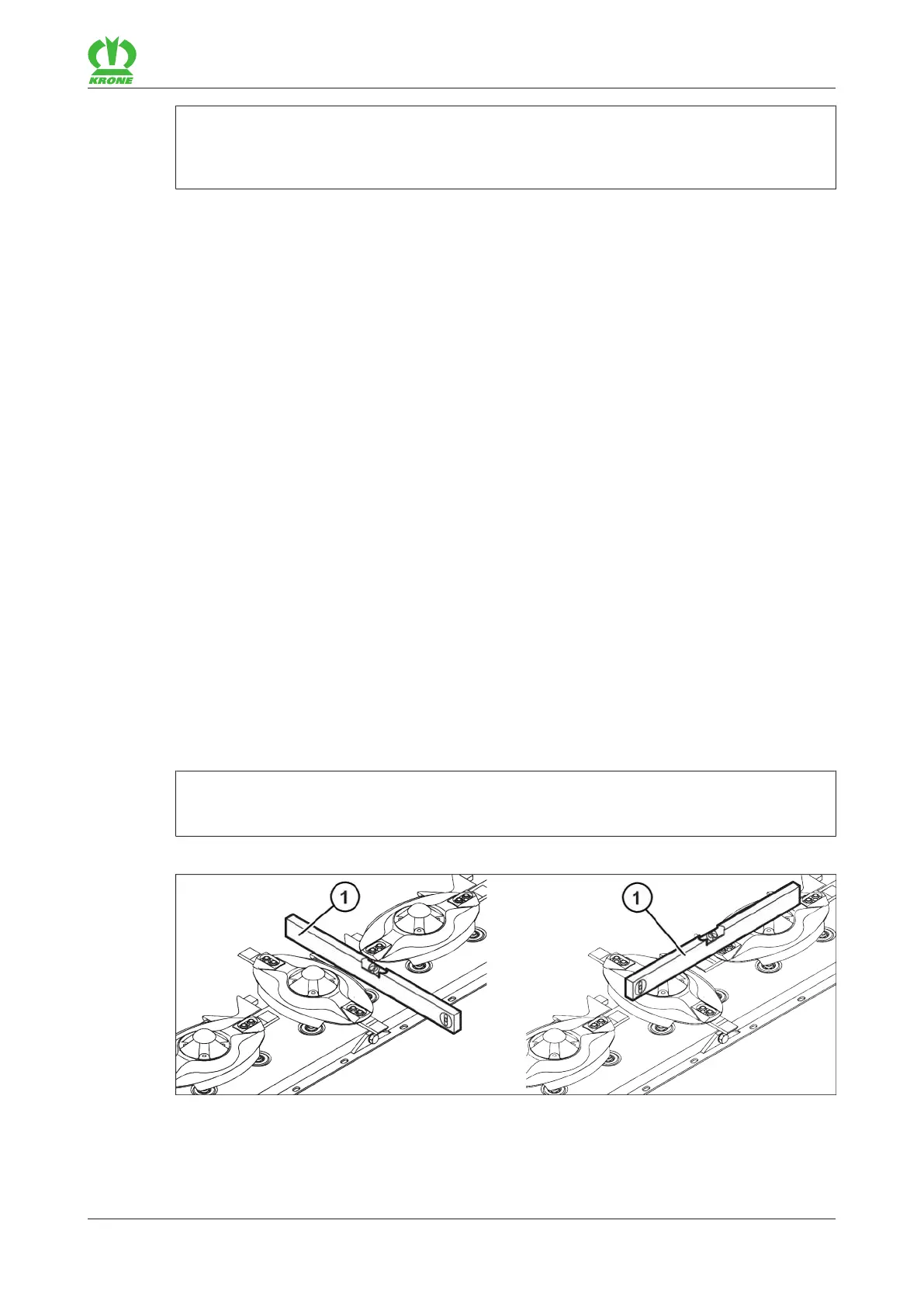

Check oil level
KM000-284
Observe the safety routine “Safely performing oil level check, oil change and filter element
change”, refer to page24.
Shut down and safeguard the machine, refer to page23.
