Initial Operation 6
Preparing front mounted mower 6.2
Original Operating Instructions 150000802_00_en 35

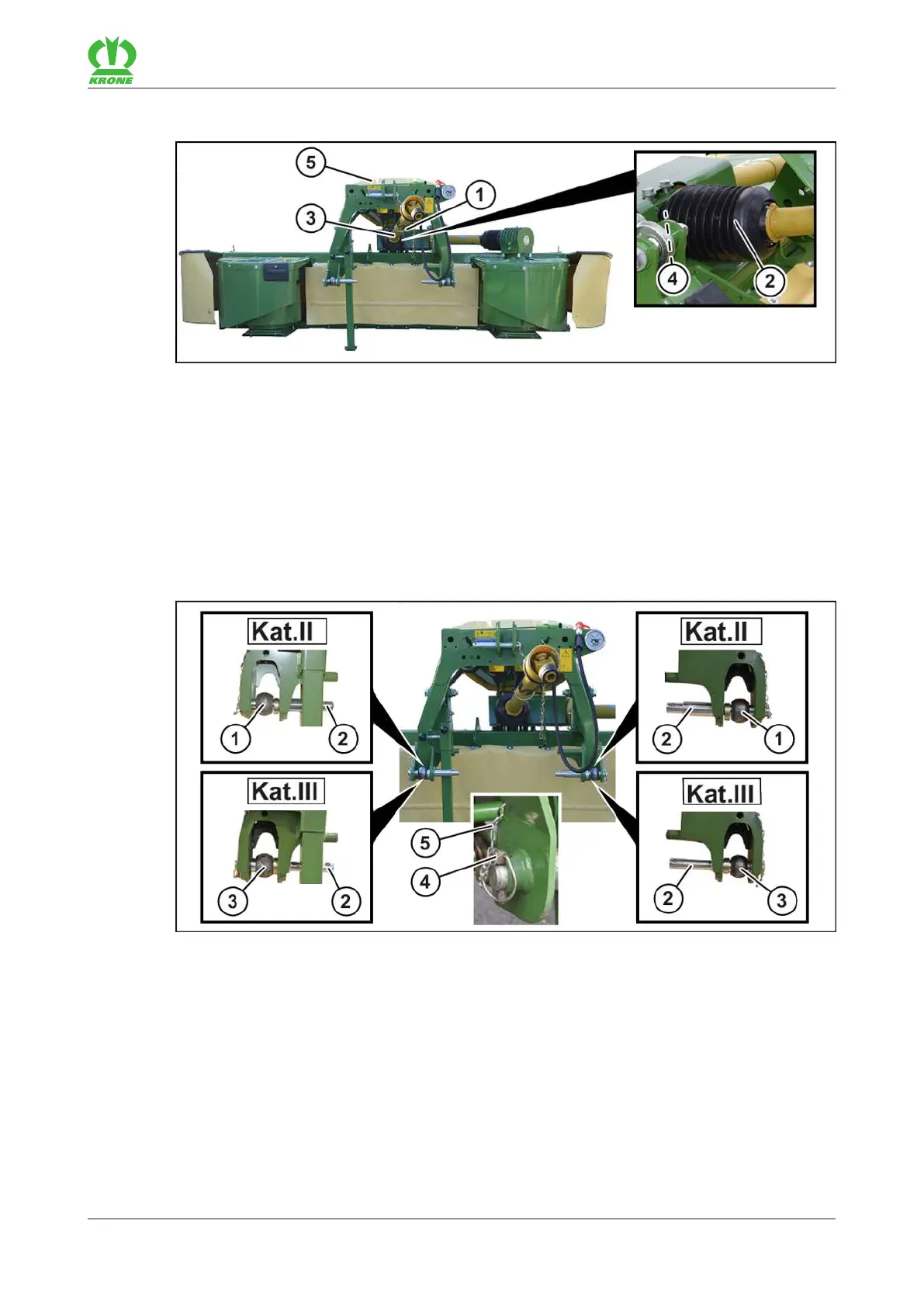

6.2 Preparing front mounted mower
KMG000-053
Dismount the guard (5).
Push the universal shaft (3) with the full guard (2) onto the PTO shaft end of the main
gearbox until the protection mechanism locks into place.
Secure the full guard (2) against turning by using the pipe clamp (4).
Place the universal shaft (3) on the universal shaft bracket (1).
Mount the guard (5).
6.3 Adapting coupling points
KMG000-081
Lower link pins
The three-point linkage is designed for category II and III.
Conversion to category II
Pull out the lower link pins (2).
Insert the lower link pins (2) through the ball sleeve cat. II (1).
Secure the lower link pins (2) by means of the linch pin (4) and the safety chain (5).
The shorter journal of the lower link pin (2) faces inwards.
