10 Settings
WARNING
Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
To avoid accidents, the relevant safety instructions must be read and observed, refer to
page12.
WARNING
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
The safety routines must be read and observed to avoid accidents, refer to page23.

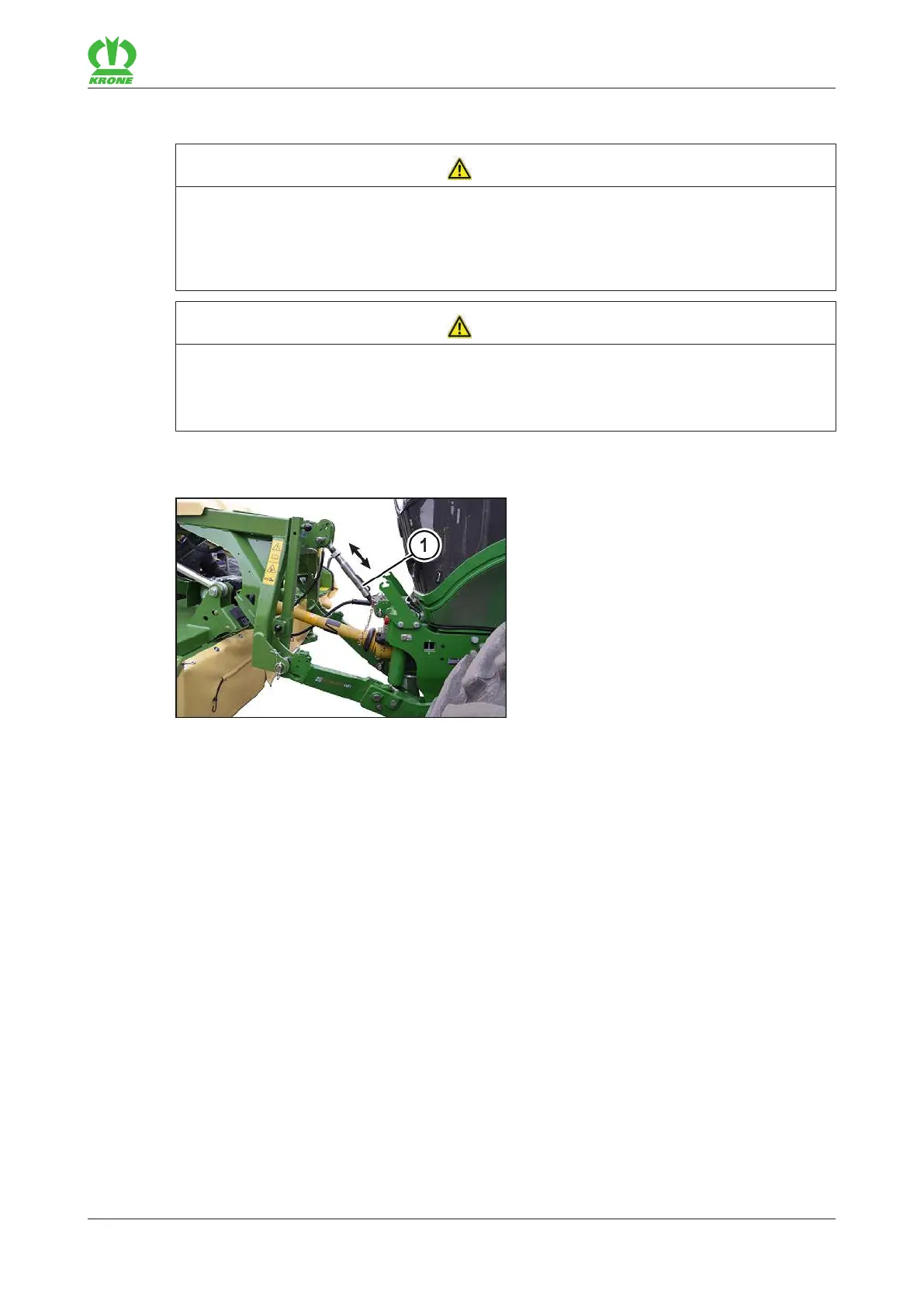

10.1 Setting the cutting height
KMG000-035
The cutting height is set via the top link (1).
Setting range of cutting height, .
ü The machine is in the working position, refer to page46.
Shut down and safeguard the machine, refer to page23.
Turn the top link until the cutting height is set.
ð Top link longer = smaller cutting height
ð Top link shorter = greater cutting height
