3 Machine Description
3.1 Machine overview
30 Original Operating Instructions 150000802_00_en
3 Machine Description
3.1 Machine overview

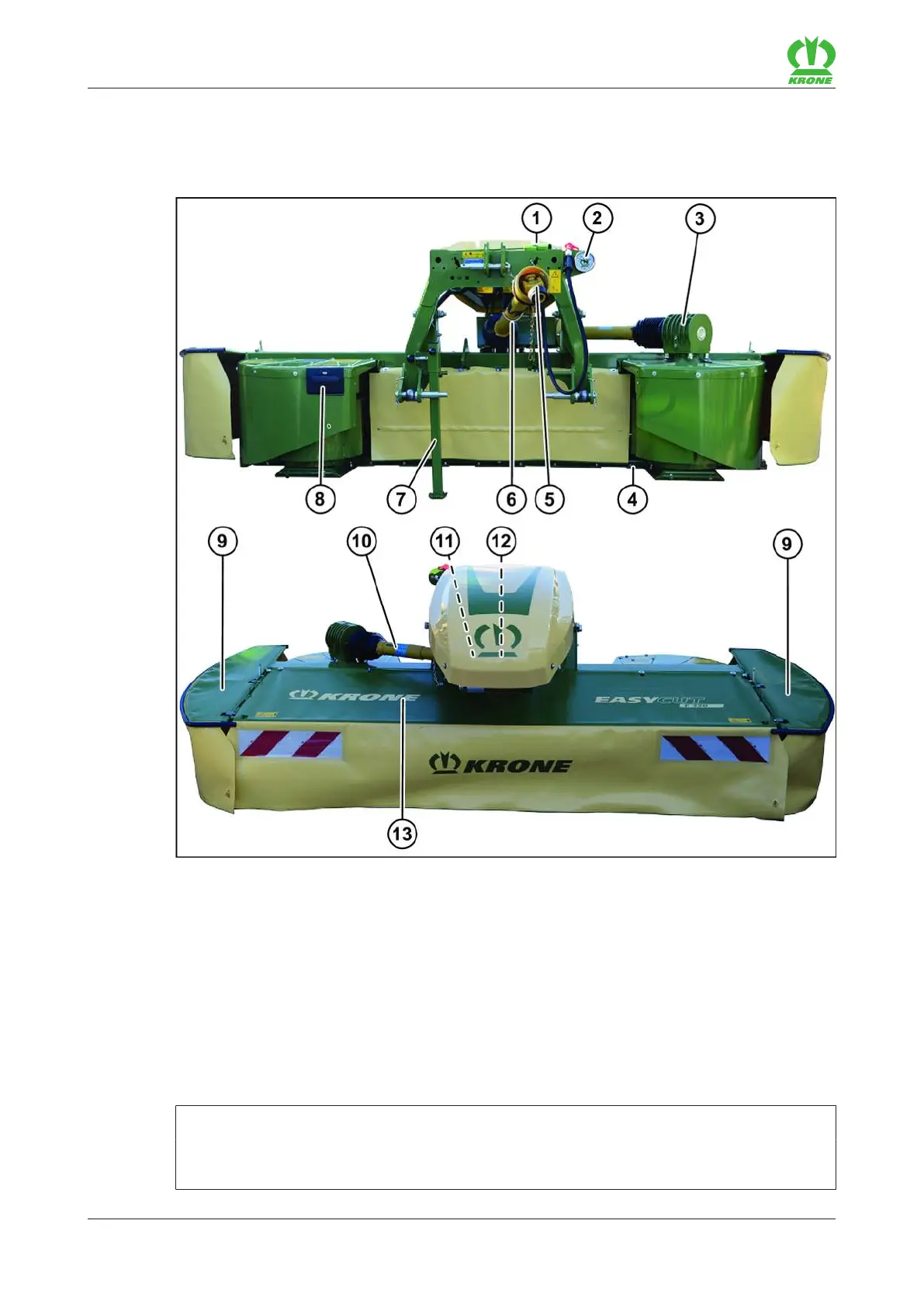

KM000-475
1 Blade key 8 Spare blade drawer
2 Pressure gauge 9 Side guard
3 Mower gearbox 10 Intermediate universal shaft
4 Cutterbar 11 Friction clutch
5 Universally-jointed drive shaft 12 Main gearbox
6 Universal shaft bracket 13 Front safety device
7 Support jack
3.2 Labelling
INFORMATION
The entire identification plate represents a legal document and should not be altered or
rendered illegible!
