Krone EasyCut R 360 User Manual

Special equipment
80
Pos: 92.14 /Beipacks/ Mäher/EasyCut/ Hydraulische Federentla stung/Vormontier ten Zylinder montieren @ 60\mod_129768891991 9_78.docx @ 559961 @ @ 1
Installing pre-assembled cylinder
EC-376-0
1
9
b
a
1
2
b

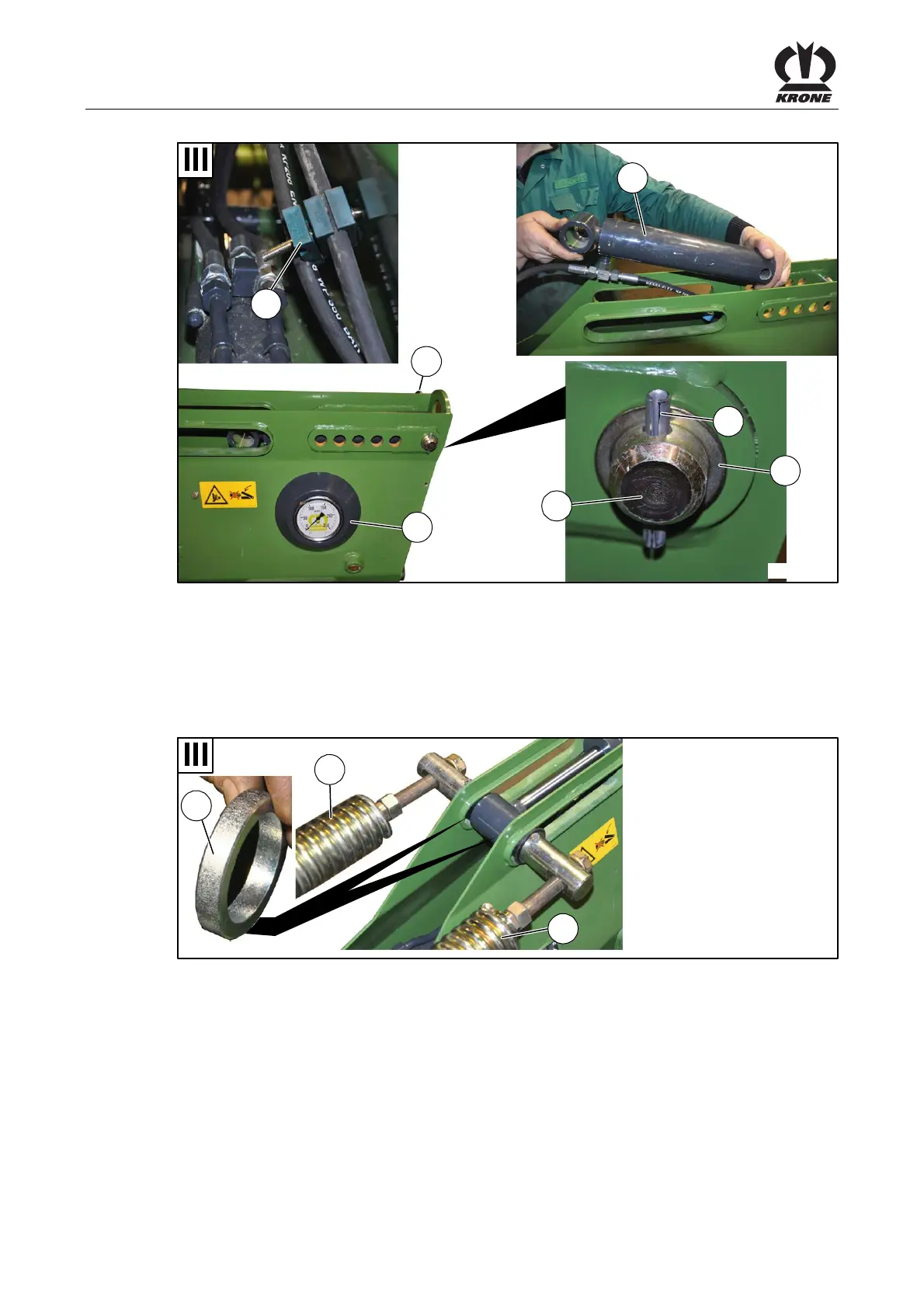

Fig. 50
• Remove upper hose clamp half (a)
• Install pre-assembled cylinder (1) (b) in the rear hole using available pin
• Secure pin (b) with washer (9) and cotter pin (8)
• Screw pressure gauge (2) onto three-point block
Pos: 92.15 /Beipacks/ Mäher/EasyCut/ Hydraulische Federentla stung/mit CV/Entla stungsfedern anschr auben @ 60\mod_1297688745 983_78.docx @ 559908 @ @ 1
Screwing on compensation springs
EC-378-0
a
a
10
Fig. 51
• Install compensation springs (a)
Ensure that you install the spacers (10) on the right and left of the cylinder.
