SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
115

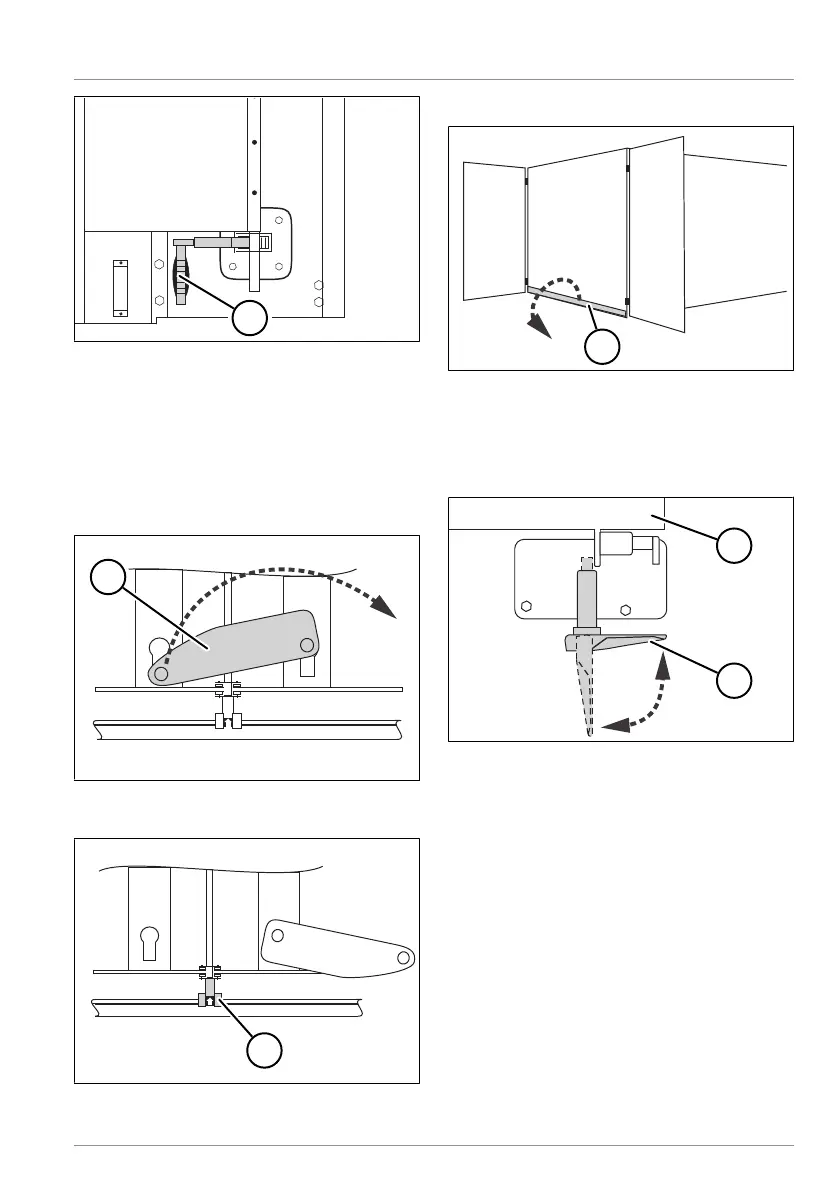

Fig.6-97: Tension ratchet
► Release the side curtain.
► Fold up the side curtain and position
the straps on the inside.
► Place all four retainer levers in the
“Plateau” position. In the “Superstruc-
ture” position, the retainer levers pre-
vent the side curtain from creasing.
Fig.6-98: Retainer lever closed
► Lift all the locks of the roof bow.
Fig.6-99: Lock for roof bow
► Open the rear doors.
► Fold down the rear beam.
Fig.6-100: Rear beam
► Close the rear doors.
► Move the locking handle on the rear
gantry down, thereby unlocking the
rear gantry.
Fig.6-101: Unlocking the rear gantry
1 Rear gantry
2 Locking handle
► Push the superstructure to the front. At
the same time, push the roof bow in-
wards.
► Slide the rear gantry with the folded
curtain toward the front wall.
► Insert three plug-in posts as door pro-
tection posts.
► Tension the side curtain with the ten-
sion ratchet at the front.
