SUPERSTRUCTURE OPERATION
116
Operating instructions • Semitrailer • 505369471-04 • 02/2019
► Strap down the superstructure using
the tension straps on the front wall.
ü The superstructure is opened.
Closing the sliding superstructure
► Remove the three plug-in posts and
securely store them in the post depot.
► Release and remove the tension
straps at the front.
► Release the side curtain with the ten-
sion ratchet at the front.
► Move the superstructure a little until
the locks loosen.
► Push the superstructure to the rear.
► Put all four retainer levers in the “Su-
perstructure” position. In the “Super-
structure” position, the retainer levers
prevent the side curtain from creasing.

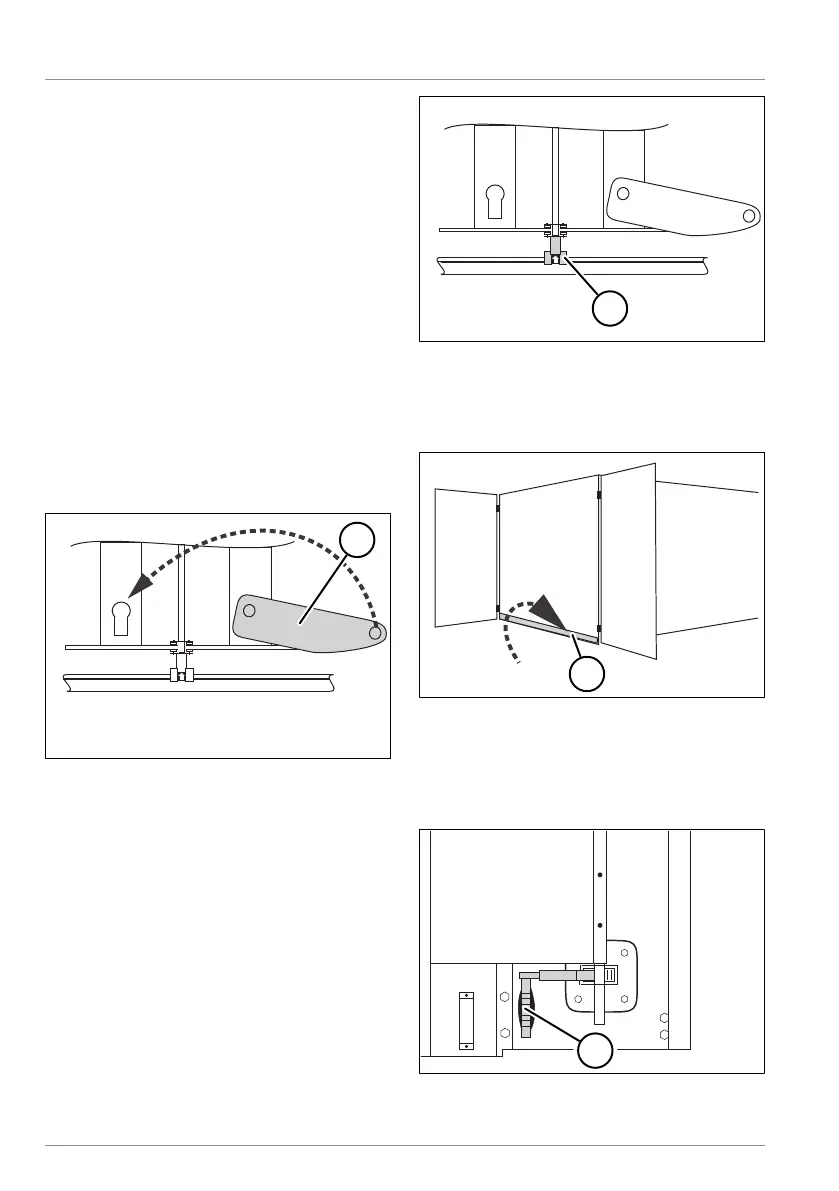

Fig.6-102: Opening the retainer lever
► Lock the rear gantry.
► Move the roof hoops to a straight posi-
tion and allow them to engage in the
sliding rail.
► Fold in all the locks of the roof bow.
Fig.6-103: Lock for roof bow
► Fold down the side curtain.
► Open the rear doors.
► Fold up the rear beam.
Fig.6-104: Rear beam
► Close the rear doors again and lock
them.
► Tension the side curtain.
ü The superstructure is closed.
Fig.6-105: Curtain buckle
