LOADING AND SECURING
148
Operating instructions • Semitrailer • 505369471-04 • 02/2019

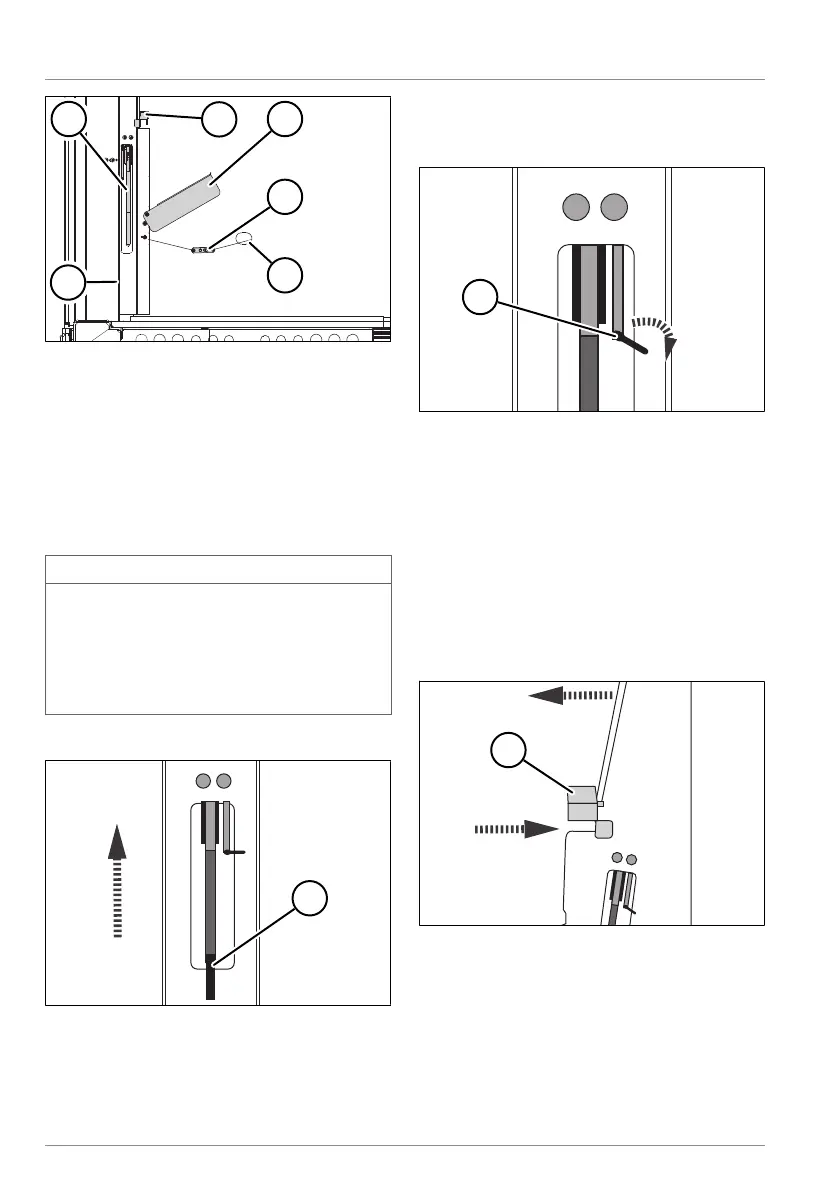

Fig.8-29: Multi Tyre system on the rear
corner post
1 Hand pump
2 Locking mechanism
3 Safety cover
4 Quick-release tensioner
5 Curtain cut-out
6 Corner post
INFO
The cable tensioning system can be oper-
ated from both sides of the outside of the
vehicle. To do this, the side curtain can be
opened at the front or the rear and the
lever on the hand pump swivelled out-
wards.
Opening the Multi Tyre system
Fig.8-30: Actuating the hand pump for cable
tensioning
1 Lever
► Actuate the lever of the hand pump on
the rear corner post briefly, until the
lock can be removed.
Fig.8-31: Opening the valve of the hand
pump
1 Valve
WARNING!Risk of crushing when open-
ing the pump valve! Wear protective
gloves.
► Open the valve of the hand pump.
ð The tensioning device and the
rope are relieved of pressure on
the inside.
Fig.8-32: Fixing the lock in the lower posi-
tion
1 Locking mechanism
► Fix the lock in the lower position.
