Krone Profi Liner - Page 79

SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
79
3
4
5
1
2

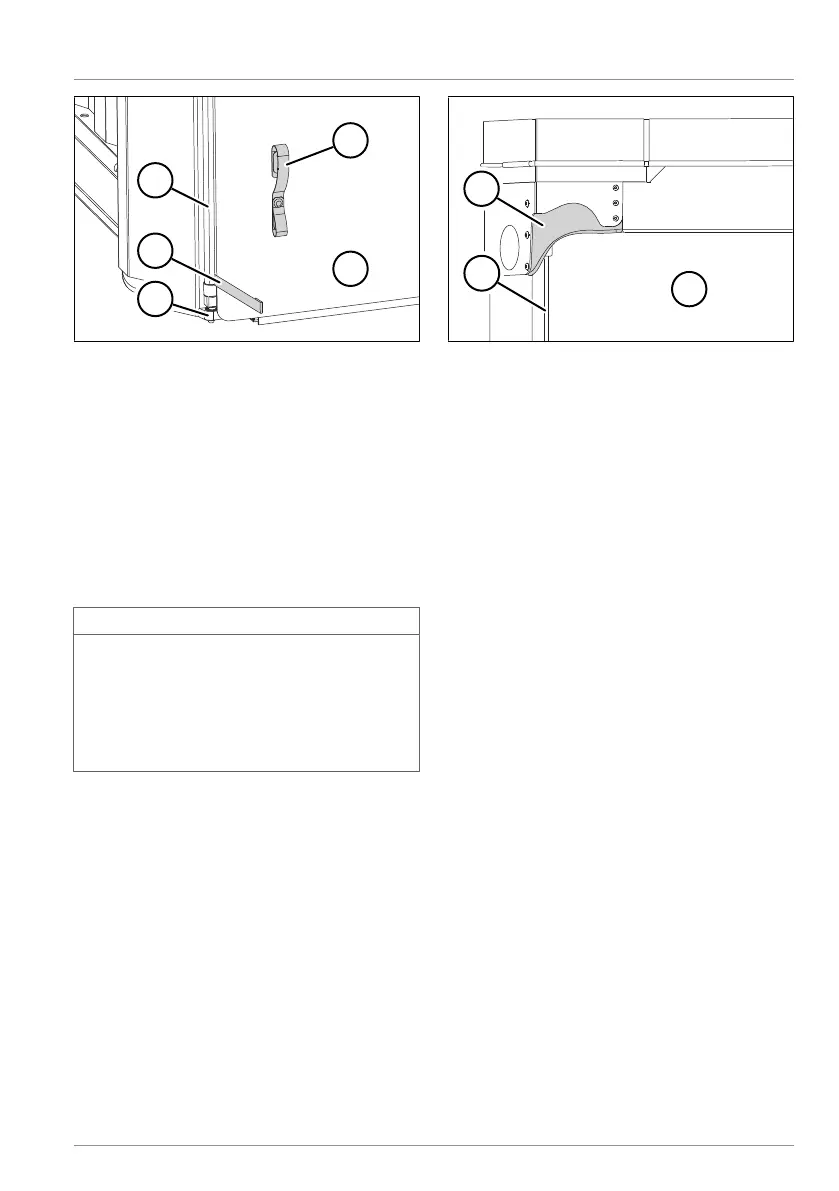

Fig.6-22: Version 1 curtain pole
1 Curtain loop (option)
2 Outside of the curtain
3 Slot holding pins
4 Curtain handle
5 Curtain pole
► Lift up the curtain pole along with the
curtain from the slot holding pins using
the curtain handle installed on the cur-
tain pole.
NOTE
Incorrect operation may cause material
damage!
Do not move the curtain by the loops (out-
side of the curtain) or by the tension bar.
The loops are only used to lift up the cur-
tain pole.
► Slide the curtain to the rear.
ü The side curtain is opened at the front.
Closing the side curtain at the front
(version1)
► Slide the curtain forwards.
1
2
3
Fig.6-23: Threading the curtain pole
1 Sealing lip
2 Outside of the curtain
3 Curtain pole
► Guide the curtain at the front below the
sealing lip with the curtain pole.
► Place the curtain pole on the slot hold-
ing pins with the curtain handle so that
the curtain pole is covered by the cur-
tain after tensioning.
► Swivel the tension lever to the side un-
til the side curtain is tensioned.
► Using a circular motion, guide the ten-
sion lever into the bracket and secure
it.
► Hook on the retainer hook (see "Fig.
6-21: Tension lever", pg.78).
► Secure the closed and longitudinally
tensioned curtain with the curtain
buckles (see "6.2.2 Curtain buckles",
pg.75).
► If necessary, install the curtain rope
(see "6.2.6 Curtain rope bracket", pg.84).
ü The side curtain is closed at the front.
Opening the side curtain at the front
(version2)
► If necessary, remove the existing cur-
tain rope.
► Release the curtain buckle (see "6.2.2
Curtain buckle", pg.75).
