SUPERSTRUCTURE OPERATION
80
Operating instructions • Semitrailer • 505369471-04 • 02/2019
1
2

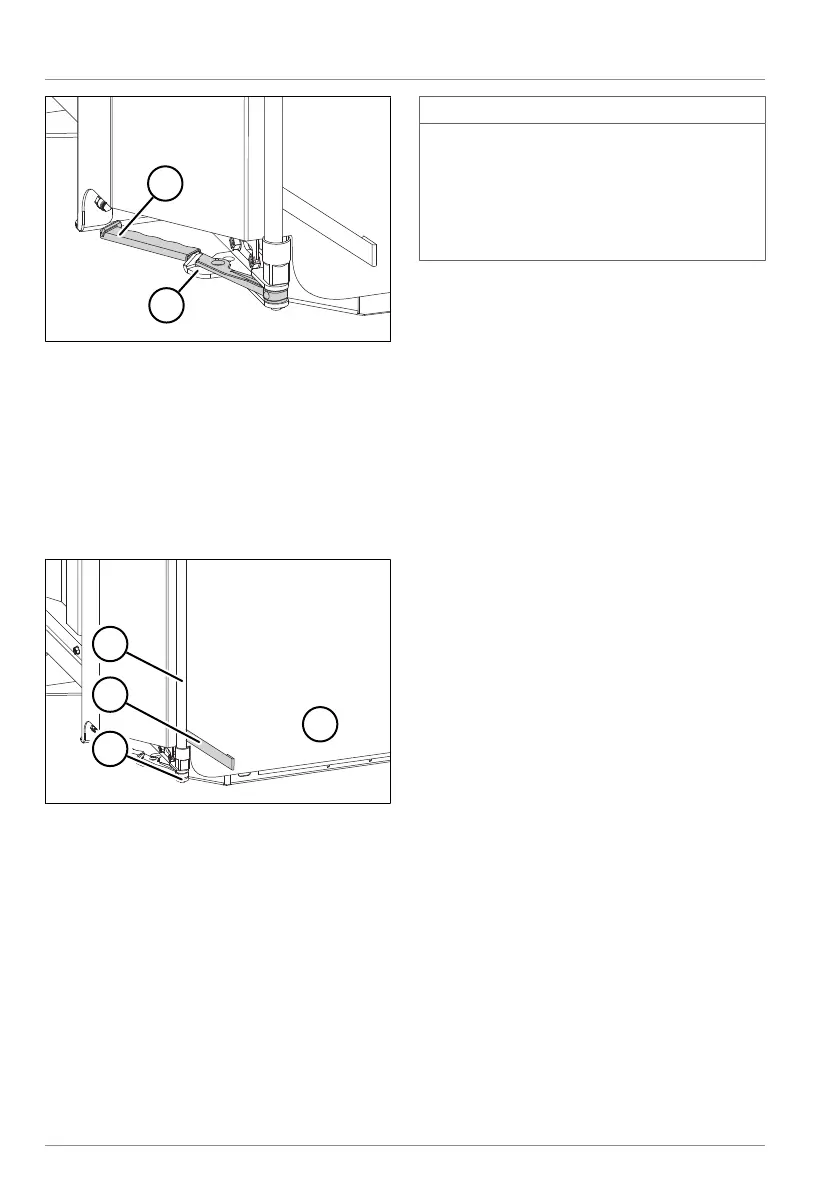

Fig.6-24: Version 2 tension lever
1 Tension lever
2 Bracket
► Press the tension lever towards the
rear and guide it out of the bracket.
► Swivel the tension lever by 90° to the
side until the side curtain is released at
the front.
3
4
1
2
Fig.6-25: Version 2 curtain pole
1 Curtain pole
2 Outside of the curtain
3 Slot holding pins
4 Curtain handle
► Lift up the curtain pole along with the
curtain from the slot holding pins using
the curtain handle installed on the cur-
tain pole.
NOTE
Incorrect operation may cause material
damage!
Do not move the curtain by the loops (out-
side of the curtain) or by the tension bar.
The loops are only used to lift up the cur-
tain pole.
► Slide the curtain to the rear.
ü The side curtain is opened at the front.
Closing the side curtain at the front
(version2)
► Slide the curtain forwards.
► Place the curtain pole on the slot hold-
ing pins with the curtain handle so that
the curtain pole is covered by the cur-
tain after tensioning.
► Swivel the tension lever to the side un-
til the side curtain is tensioned.
► Guide the tension lever into the
bracket until it locks into place.
► Secure the closed and longitudinally
tensioned curtain with the curtain
buckles (see "6.2.2 Curtain buckles",
pg.75).
► If necessary, install the curtain rope
(see "6.2.6 Curtain rope bracket", pg.84).
ü The side curtain is closed at the front.
6.2.4.2 Channel rail
Before opening, the tension on the side
curtain must be released at the front with
the channel rail. Depending on the equip-
ment, two different versions are possible.
Opening the side curtain at the front
(version1)
► If necessary, remove the existing cur-
tain rope.
► Release the curtain buckle (see "6.2.2
Curtain buckle", pg.75).
► Release the curtain using the rear cur-
tain tensioning device (see "6.2.5 Rear
curtain tensioning device", pg.82).
