SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
87
1

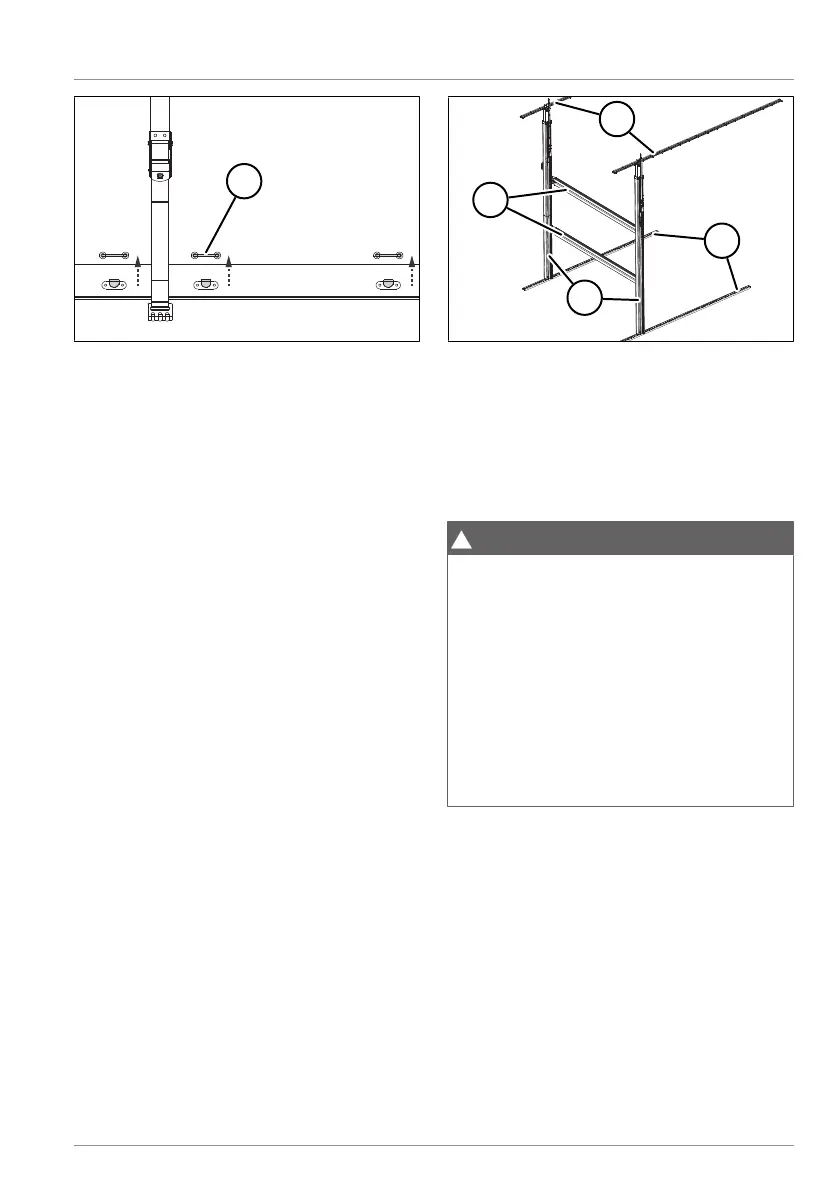

Fig.6-41: Releasing the rubber expanders
1 Rubber expanders
► Release all the rubber expanders on
the side curtain’s edge flap.
► Insert the lifting aid into the “holes” of
the centre post and lift slightly.
► Pull out the bolt.
► Set the desired height using the lifting
aid.
► Insert the bolt.
► Lower the roof until it rests on the ad-
justment bolts.
► Hook all the rubber expanders into the
edge flap.
ü The superstructure height has been
adjusted.
Rearward load securing
Depending on the version, KRONE trailers
with a Comfort curtain can be equipped
with rearward load securing.
2
1
4
3
Fig.6-42: Rearward load securing
1 Transverse beams
2 Top perforated rails
3 Bottom perforated rails
4 Vertical load securing beam
Installing the rearward load securing
!
WARNING
Risk of accident due to improperly in-
stalled rearward load securing!
Improperly installed rearward load secur-
ing does not fully secure the load. Load
falling out can cause personal injury as
well as material damage.
► Always allow the bolt of the load se-
curing beams to fully engage across
the entire length of the bolt.
► Do not exceed the 10t payload when
using the rearward load securing.
► Allow the top and bottom bolts of the
load securing beams to engage into
the perforated rail.
