SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
91
1 2

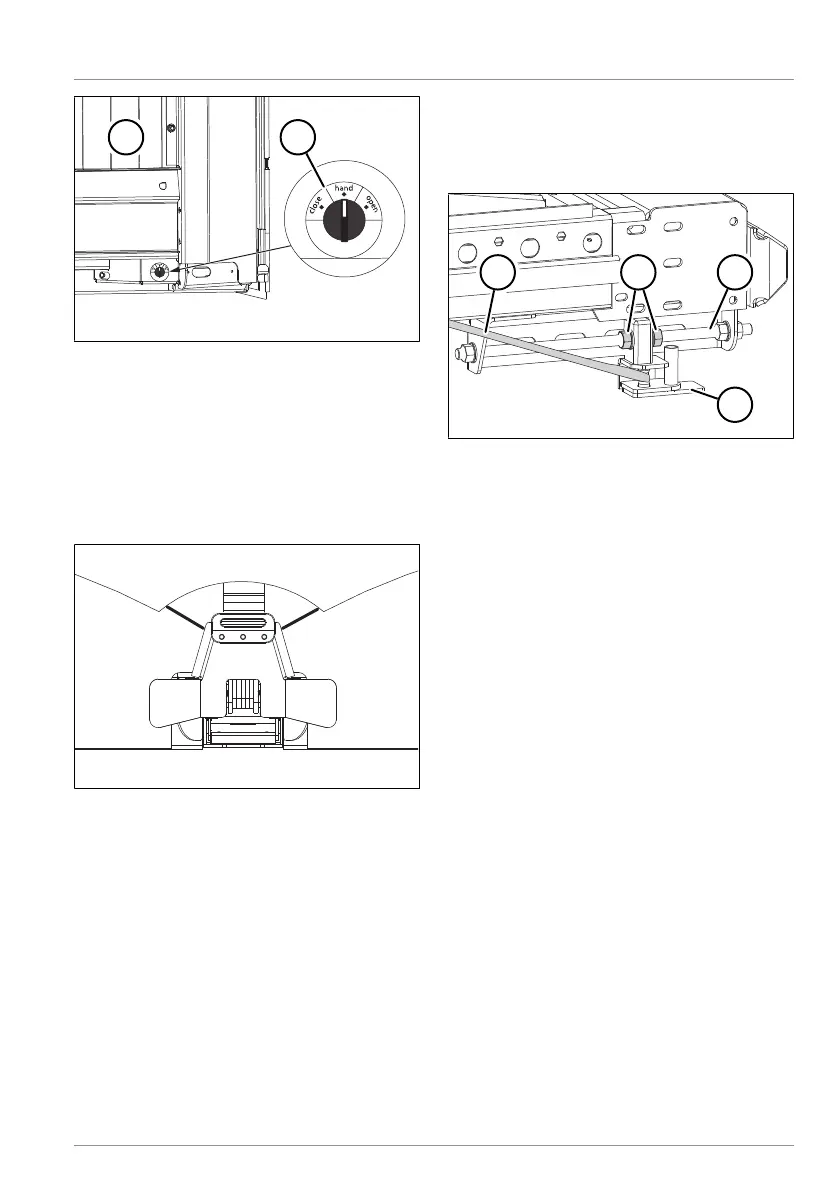

Fig.6-49: Switch in the “hand” position
1 Front wall
2 Switch in the "hand” position
► Turn the switch to the "hand" position.
► Move the curtain hooks into position by
hand.
► Turn the switch to the "close" position
Fig.6-50: The tension cable is tensioned
ü The EasyTarp curtain tensioning
device is tensioned and locked.
Re-tightening the EasyTarp curtain ten-
sion cable
If the tension subsides, the EasyTrap cur-
tain tension cable can be re-tightened.
Depending on the version, KRONE trailers
may be equipped with the following to re-
tighten the EasyTarp curtain tension cable
○ a threaded rod, or
○ a grid.
Re-tightening the EasyTarp curtain with
a threaded rod
þ The EasyTarp curtain tensioning
device is opened.
2
4
1 3
Fig.6-51: Curtain tensioning device with
threaded rod
1 Tension cable
2 Nuts
3 Threaded rod
4 Curtain tensioning device
► Release both nuts at the rear in the
direction of travel.
► Turn the nut at the front in the direction
of travel until the curtain tensioning
device tightens the tension cable.
► Bolt on the curtain tensioning device
again with the nuts.
ü The EasyTarp curtain is re-tightened.
