SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
93
1

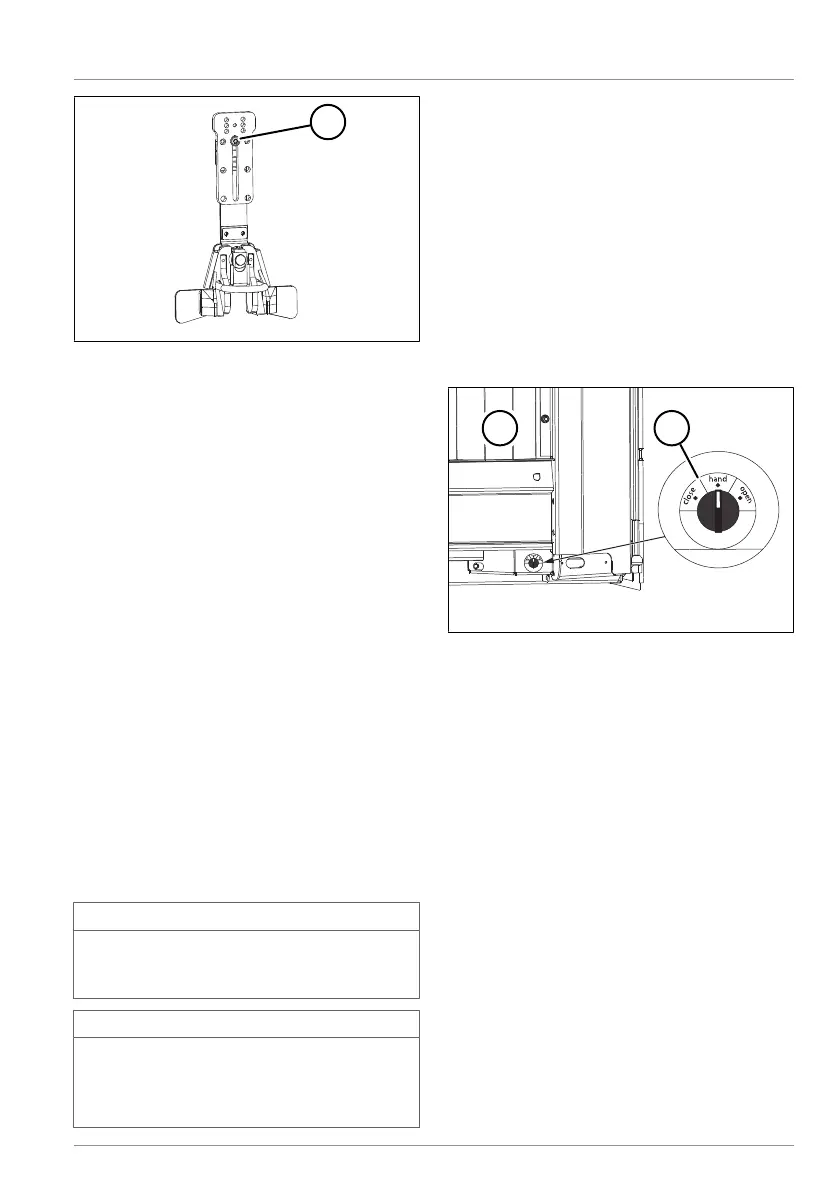

Fig.6-55: Screw positioned 2x higher
1 Screw positioned 2x higher
► Position the EasyTarp hook on the in-
side of the curtain on the interface
50mm higher twice.
► Tighten the screw of the EasyTarp
hook.
► Repeat the work steps on all EasyTarp
hooks.
► Unfold the curtain and fasten it to the
velcro.
► Plug in the centre posts 50mm lower
twice (see "" pg.100).
► Lift up the canopy on the rear gantry
and the front wall using the pumps and
plug in the travel height adjustment
50mm lower twice (see "6.5.5 Hydraulic
lifting roof", pg.117).
► Open the pump valve and lower the
canopy.
► Close the curtain at the front and rear.
Adjust the length of the curtain accord-
ingly.
INFO
The folded curtain must not be in the pull-
in area of the EasyTarp hook when it is
locked.
INFO
To adjust the tension cable length with dif-
ferent roof adjustments, the tension cable
roller on the rear tension cable lock is
used.
► Turn the EasyTarp hook to the "close"
position.
ð The EasyTarp curtain tensioning
device is closed.
ü The roof frame is lowered by 100mm.
Manually unlocking the EasyTarp cur-
tain in the event of pneumatic system
failure
The three holes to manually unlock the
EasyTarp curtain are found on the side and
below the locking unit. The holes are
marked with red stickers.
1 2
Fig.6-56: Switch in the “hand” position
1 Front wall
2 Switch in the "hand” position
► Turn the switch to the "hand" position.
► Using a screwdriver, pierce one of the
three points marked in red.
