SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
99

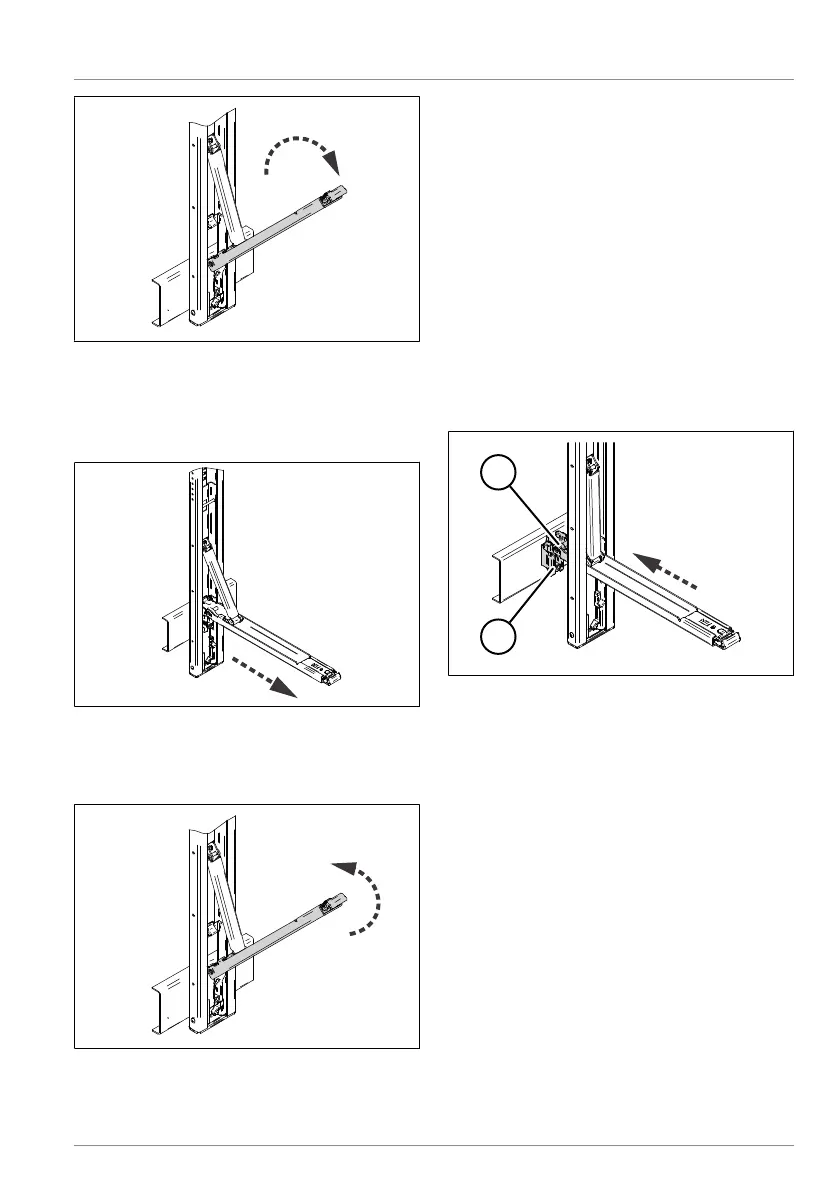

Fig.6-66: Folding down the locking lever
► Completely fold down the locking lever
until the post retainer is released from
the chassis and the post slides down
from the post pocket.
Fig.6-67: Swivelling the post away from the
vehicle
► Swivel the posts away from the
vehicle.
Fig.6-68: Closing the locking lever
► Close the locking lever.
ü The posts are opened.
Sliding the telescopic fold-out posts
þ The posts are opened.
► Swivel the posts away from the vehicle
and move them in the desired direc-
tion.
ü The posts have been moved
► Close the posts prior to departure.
Closing the telescopic fold-out posts
► Position the posts in front of the post
pockets.
► Press in the locks on the locking lever.
► Pull out the locking lever from the post
profile.
Fig.6-69: Locking lever folded down
1 Fastening mechanism on the locking
lever
2 Post pockets
► Place the locking lever's fastening
mechanism on the post pocket.
► Fold up the locking lever to the stop,
until the locks engage.
ü The posts are closed and secured.
