V - 1
Basic Settings and Operation
5 Basic Settings and Ope-
ration

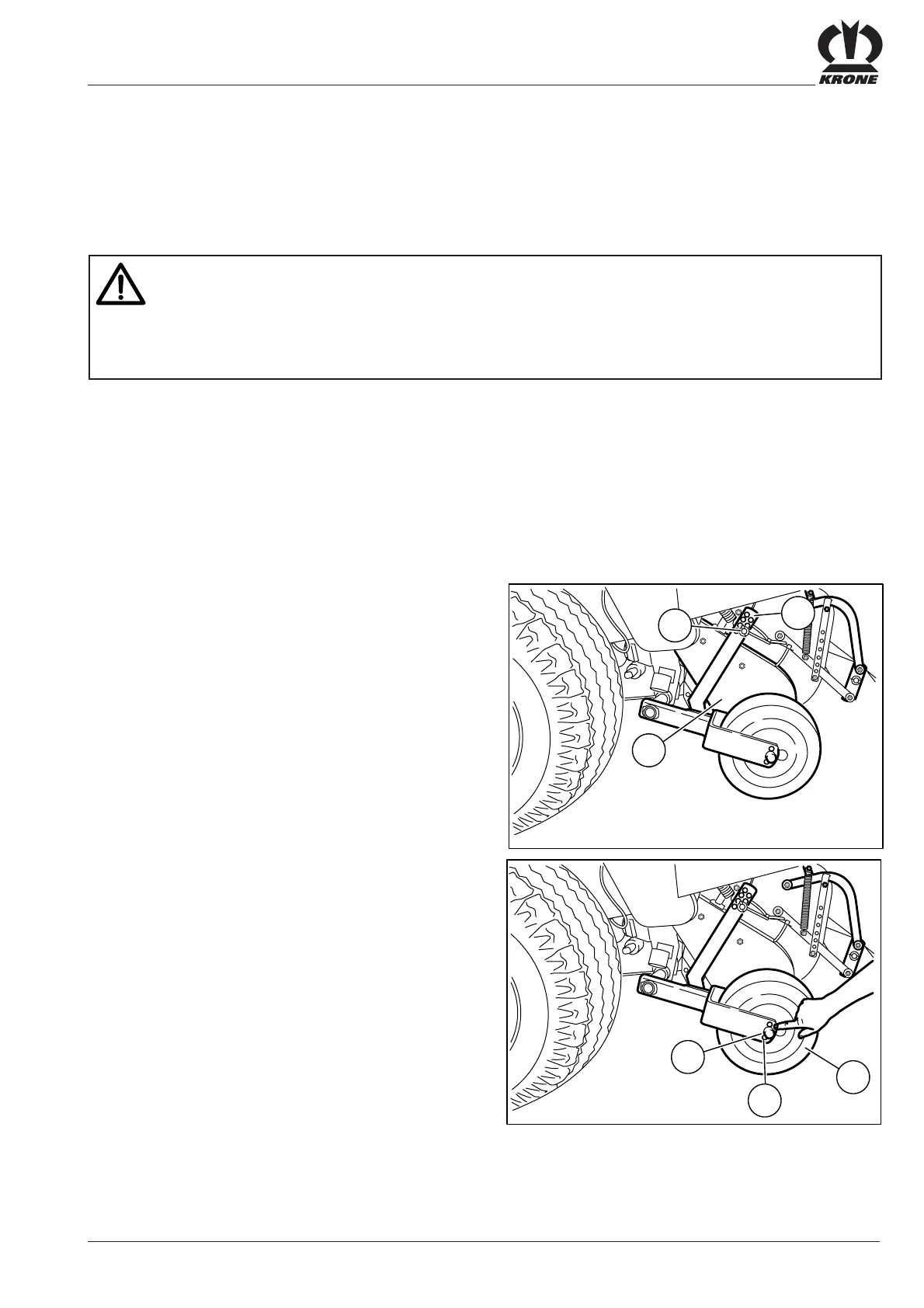

5.1 Pick-Up
Special Safety Instructions
Additional option:
• Raise the pick-up hydraulically.
• Undo nut (2).
• Set the feeler wheel (1) into the new position on the
pick-up fork (3).
• Attach and tighten lock nut (2).
• Always adjust both sides.
The following general rules apply to all maintenance, assembly, repair and adjustment work:
• Bring the round baler to a complete standstill.
• Switch off the motor, remove the ignition key and disconnect the 12 V supply voltage.
• Secure the tractor and round baler against rolling.
• Risk of pinching when making adjustments to the pick-up. Secure the pick-up to prevent
it from being lowered unintentionally (e.g. with low limiter).
Adjust the pick-up working height to correspond to the
prevailing ground conditions.
The pick-up can be adjusted only after the baler has been
set to the correct height (see A 1.2).
Basic Setting:
the gap between the tines and the ground should be
approximately 20 – 30 mm.
• Raise the pick-up (3) hydraulically.
• Remove the linch pin (1).
• Set the perforated rail (2) in the required position.
• Secure in place using the linch pin (1).
• Always adjust both sides.
RBV04181
1
2
3
RBV04180
1
3
2
