V - 22
Basic Settings and Operation

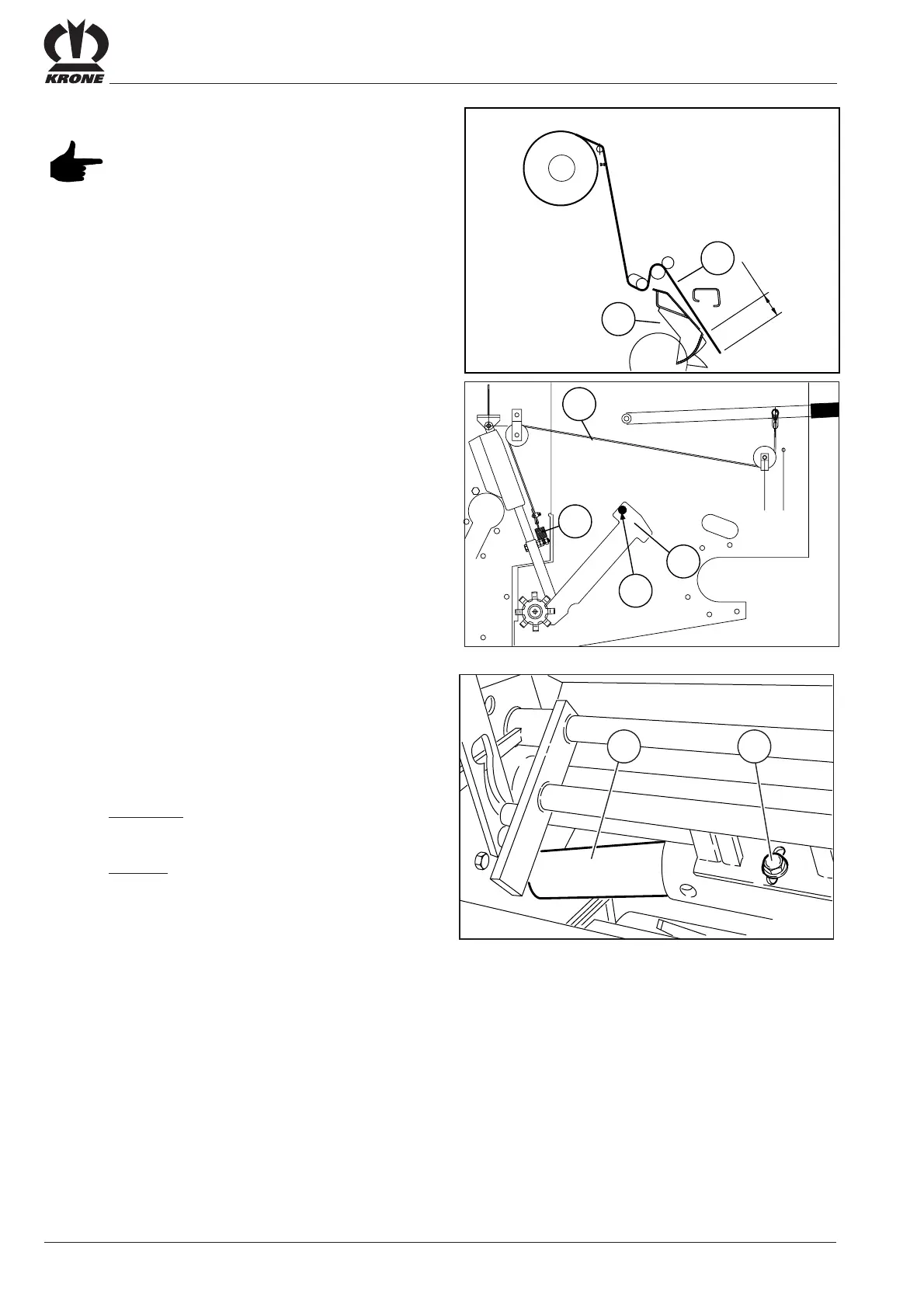

The net brake setting depends on the type
of netting being used. The net brake
should be set so that the net is in the
channel approx. 0 - 50 mm above the
scraper, after the binding process is
complete.
Always use a speed of 540 rpm for
wrapping (use the normal operating speed).
5.7.6 Net Stretcher Bar
The net stretcher bar (2) can be rotated to optimise use of
the net width.
• Undo bolt (1) on the right and left side.
turn tube backwards = netting is spread extremely
wide
turn tube forwards = netting is spread less wide
(for net varieties which are not
so wide)
• Tighten bolt (1) on the right and left side.
RP16010
12
RP-00-009
1
3
4
2
Adjusting the net brake releasing position
Move tensioning lever (2) from below to central position.
In this position:
• tension spring (3) must not be under tension
• wire rope (4) must be slightly tensioned.
0-50 mm
KR200070
1
2
