IX - 10
Maintenance
after initial 8 operating hours wheels, wheel nuts x
and after every wheel change
after extended PTO shaft slip clutch x
downtimes (friction clutch only)
after first time use chain tension:
then after every 100 bales floor conveyor drive x x
pick-up drive x x
chain tension:
floor conveyor xx
floor conveyor drive x x
at the beginning of the season pick-up drive x x
(after approx. 5 bales) chain tension:
roller drive x x
pick-up drive x x
after first time use
(approx. 30 - 50 operating hours)
then annually after
every season
gearbox x
oil change
check
adjust
bleed
tighten
Intervals Machine
component
Maintenance at specified intervals
9.3.3 Checking the brake settings
The natural limited wear of brake drums and brake pads
means that the wheel brakes need to be frequently
adjusted in order to keep the braking cylinder stroke to an
optimum. In order to achieve minimum braking delay, it is
necessary to keep the air play between the pad and the
brake drum to a minimum.

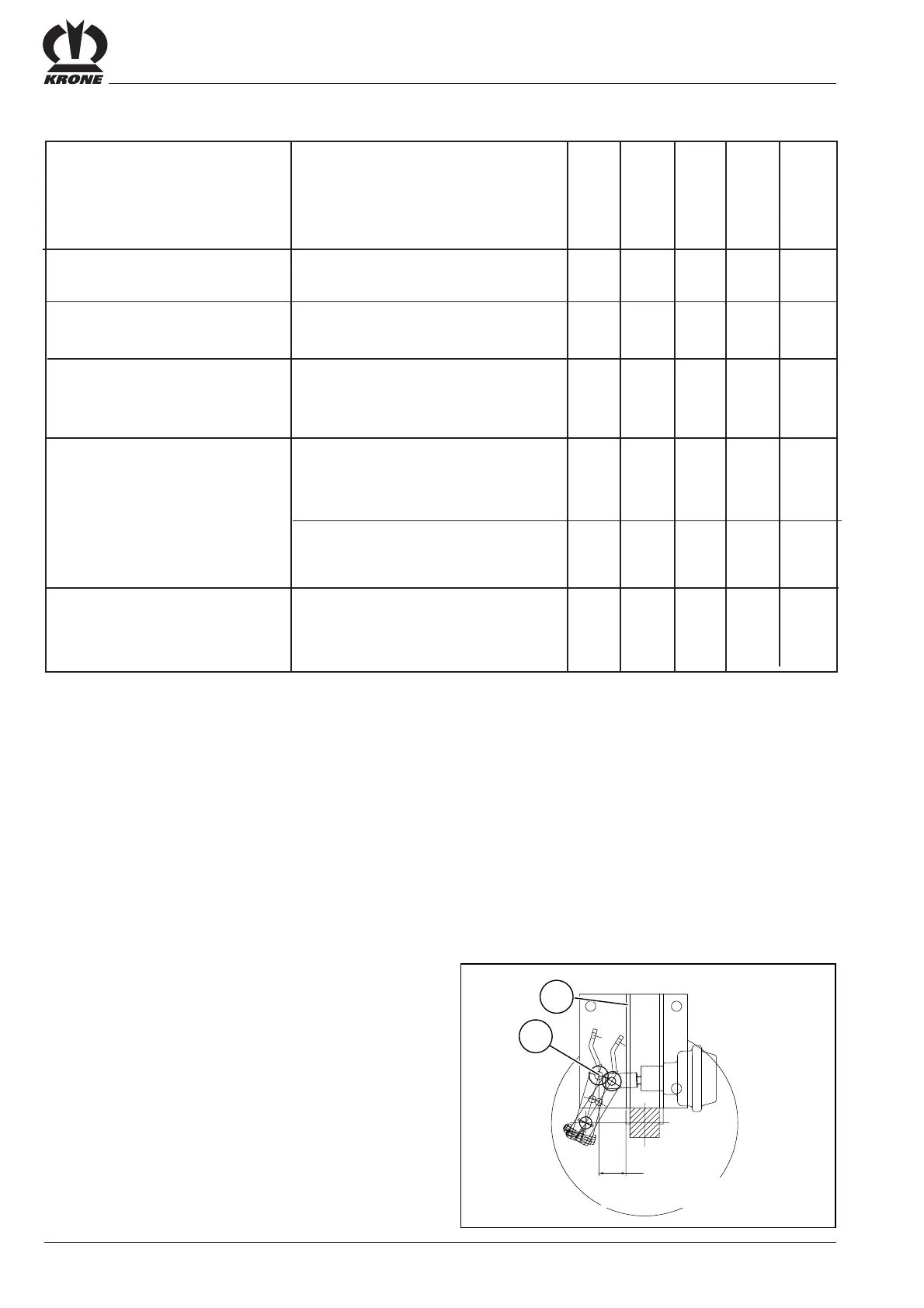

9.3.4 Setting the cam brake
Single axle - compressed air brake system
At ca. 6 bar, the brake lever should be ca. 55 mm from
the plate (2) when in brake position.
Max. Bremshebelstellung
bei 6 bar
55 mm
9"
Druckluftanlage
RP-00-001
1
2
Compressed air
brake system
max. brake lever
position at 6 bar
