IX - 5
Maintenance
After adjustment, rotate the round baler
by hand and check whether the scraper
bar comes into contact with the spiral
roller.
The scraper bar is adjusted relative to the upper spiral roller inside the bale chamber. Make
certain to close the shut-off tap on the left-hand tailgate hydraulic cylinder after opening the
bale chamber.

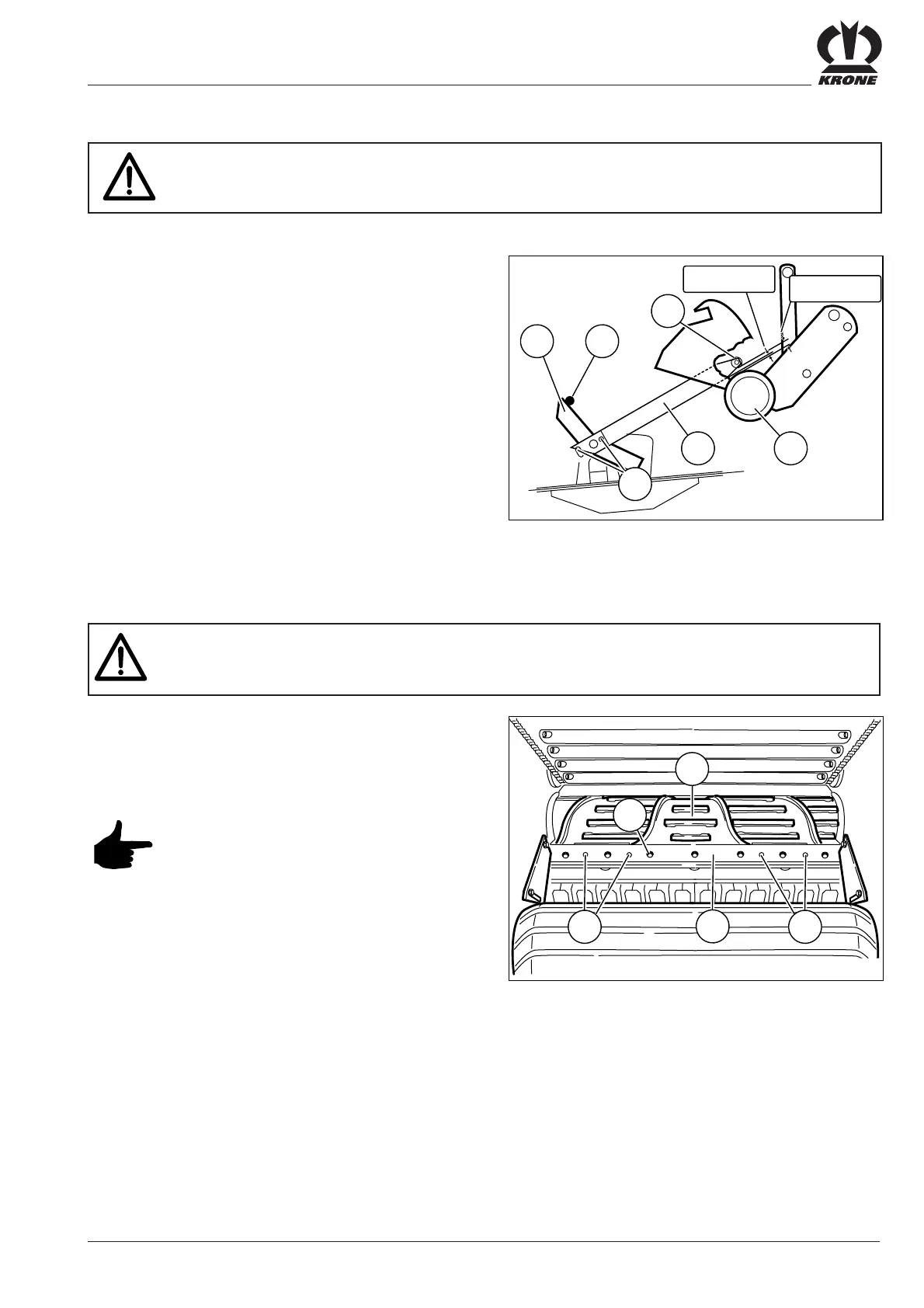

9.1.5 Adjusting the Scraper Bar In Relation
to the Upper Spiral Roller
Adjusting the cutter blades
If blade support stop (1) fits close to stop (2), the gap
between spring bar (3) and bearing tube (4) should be a =
approx. 2 mm and the gap between bearing (6) and
bearing tube (4) should be b = aprrox. 8 mm.
Adjustment:
• Undo bolt (5).
• Slide until gap a = 2 mm / b = 8 mm
• Tighten the bolt (5).
9.1.4 Net Wrapping System
• Unintentional actuation of the net wrapping system must be prevented.
• The cutter blade on the net wrapping system is extremely sharp.
Extreme risk of injury!
Loosen the nut (1) and the hex. socket head cap screws
(4) in the blade bar to adjust the distance between the
scraper bar (3) and the upper spiral roller (2). Move the
scraper bar in the slot until it is positioned against the
spiral roller. Re-tighten the nut (1).
VP-3-013
3
2
1
4
4
RP-B-003
2
3 4
1
a=2mm
5
b=8mm
6
