IX - 4
Maintenance

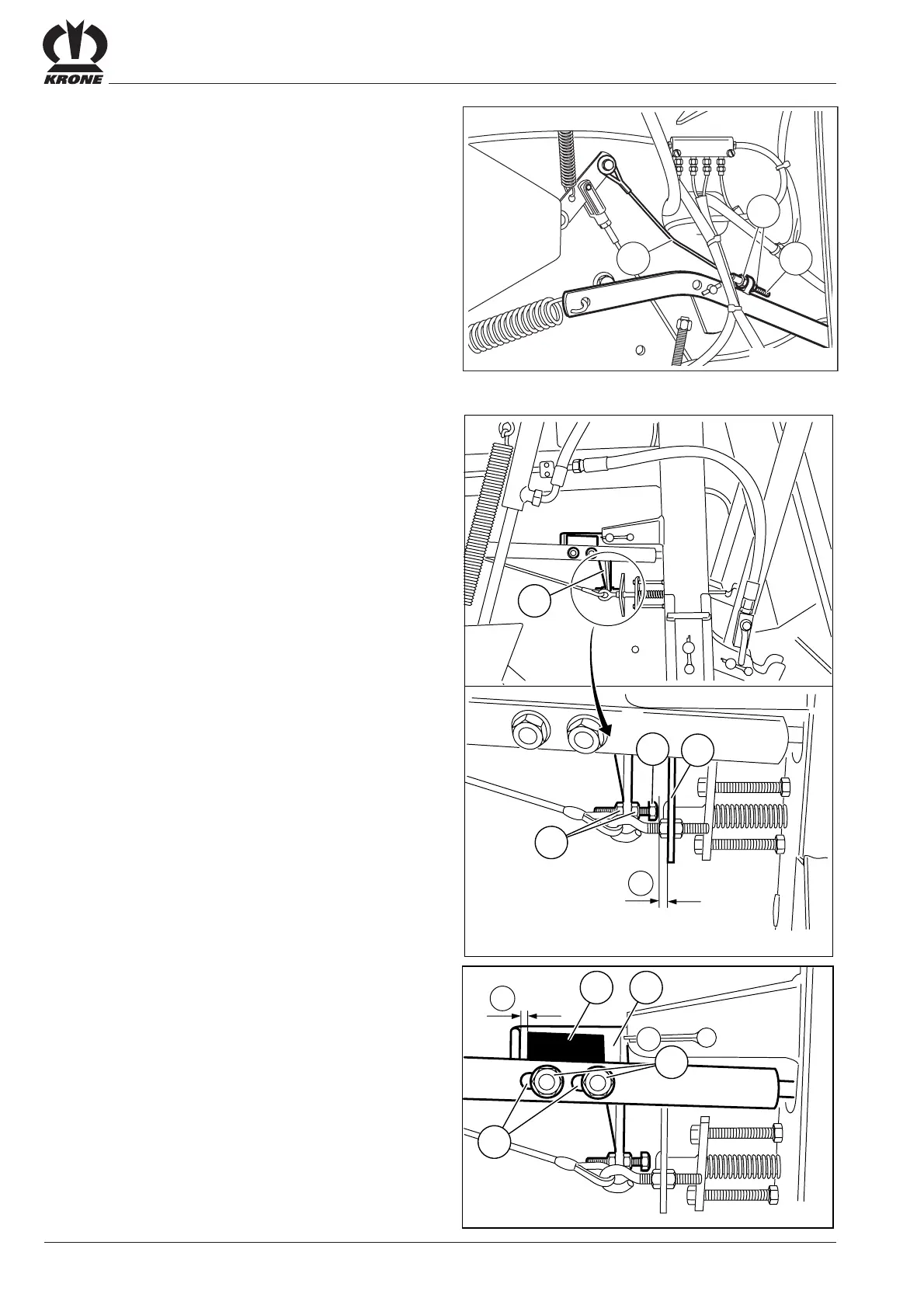

The gap a between the locking hook stop (2) and the stop
(1) must be a = 2 - 5 mm.
Adjustment:
• Undo the nuts (3).
• Slide the stop into the slots (4).
• Tighten the nuts (3).
Adjusting the rope for the “bale chamber shut and
locked” display
The baling pressure indicator – on the left side of the
machine – indicates whether the tailgate is locked properly
using information transferred by the rope (1).
If the locking hook is in the down position but the tailgate
has not been shut properly, the left-hand baling
pressure indicator should be located between the
numbers 1 - 3.
Adjustment:
• Slacken the nuts (2) and turn until the baling pressure
indicator is located between the numbers 1 - 3.
• Tighten the nuts together.
Locking hook stop
Check the setting of the locking hook stop (1) to ensure
that the tailgate lock functions correctly.
The gap between the adjusting screw (3) and the touch
switch (4) must be a = 2 - 5 mm.
Adjustment when the tailgate is open:
• Undo lock nuts (2).
• Rotate the adjusting screw until the gap a = 2 - 5 mm.
• Tighten the lock nut.
1
a
2
3
4
RP-A-014
RP-A-015
a
2
3
4
1
RBR20131
31
2
