VII - 4
Control unit Medium

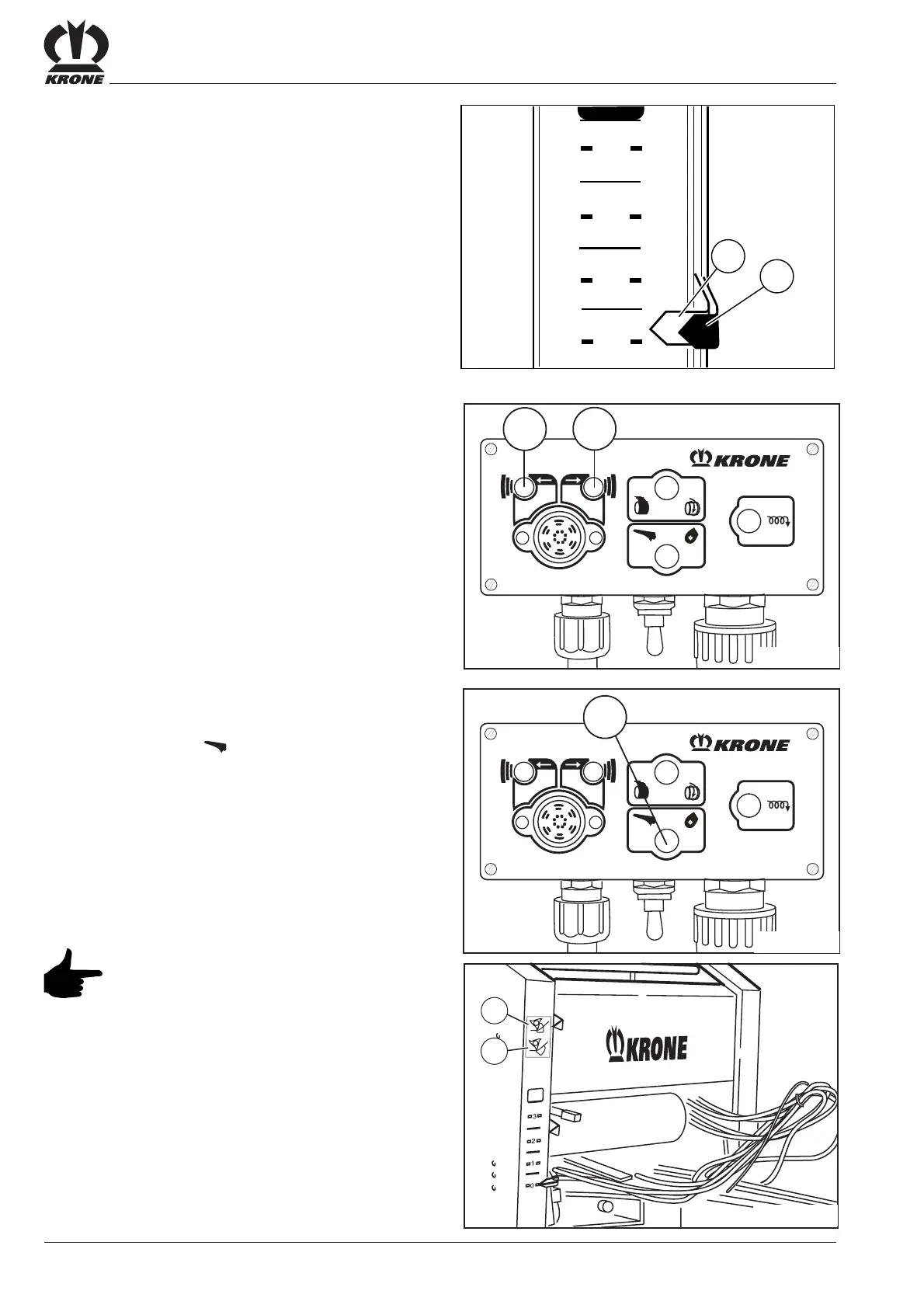

7.5 0-Blade position
The cutting mechanism can be switched on and off using
the respective control valve of the tractor.
• Move switch (8) to position
• Use the control valve of the tractor to switch the
cutting mechanism on and off.
An indicator on the right hand front machine side shows
whether the cutting mechanism is switched on or off.
Position I: Cutting mechanism switched on
Position II: Cutting mechanism switched off
The 0-blade position display (1) also
indicates during pressing whether the
blades were pushed out of their operating
position by foreign bodies.
7.4 Sensor Test
The control unit require data acquired via the sensors to
ensure trouble-free functioning.
The mounting positions and required settings are
described in Chapter 9 “Maintenance”.
Sensor pressure right
Sensor pressure left
The baling pressure gauge is located at the front end of
the round baler.
When the right-hand indicator (A) rises within the set
pressure range, the lamp (2) should go out.
When the left-hand indicator (B) rises within the set
pressure range, the lamp (1) should go out.
RP600011
2
1
RP-0-018
2
3
0
1
RP-3-002
B
A
RP600012
8
RP600013
I
II
