IX - 7
Maintenance

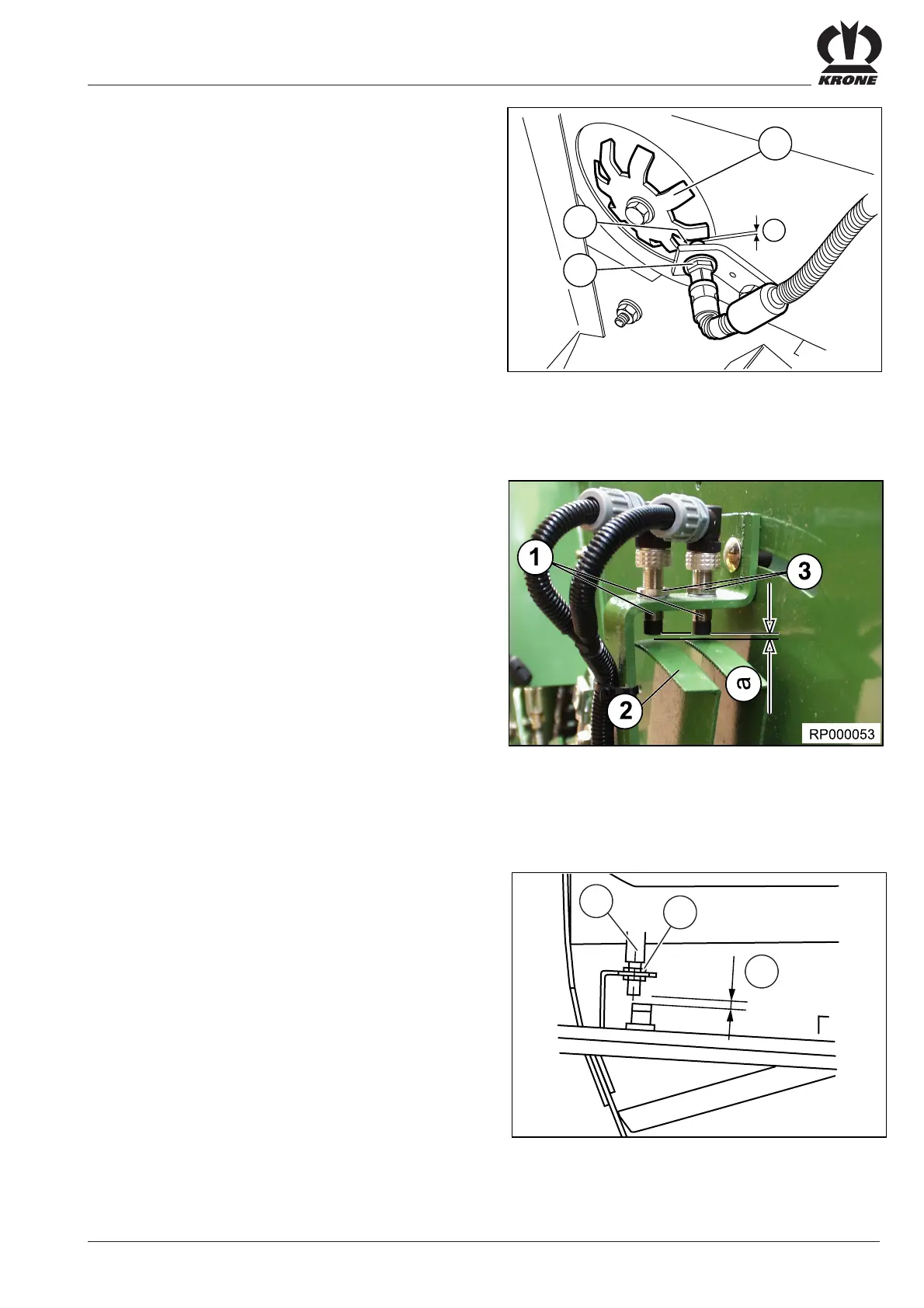

9.2.6 Tailgate Sensors
Comfort
The tailgate sensor (1) is located on the left side of the
machine.
The value next to the word “TAILGT” in the comfort
control display should switch to “0” when the locking hook
is pressed upwards.
Adjustment:
• Undo the nuts (1).
• Adjust the sensor until gap a = approx. 10 mm.
• Tighten the nuts.
RP-0-003
2
1
a
9.2.4 Wrapping Mechanism Sensors
Medium / Comfort
The first sensor (1) is located on the wrapping mechanism
in front of the V-belt pulley.
The gap between the sensor and the toothed disk (2) must
be a = 1 - 2 mm.
Adjustment:
• Undo the lock nut (3).
• Adjust the sensor (1) until gap a = 1 - 2 mm.
• Tighten the lock nut (3).
9.2.5 Baling pressure sensor
Baling pressure sensor (1) is located on the right hand side
of the machine under the front guard. Distance (a) between
sensor and segment (2) should be 2 mm.
Adjustment:
• Undo the lock nut (3).
• Adjust the sensor (1) until gap a = 2 mm.
• Tighten the lock nut (3).
Medium
