9.1.3 Adjusting the baling pressure
indicator

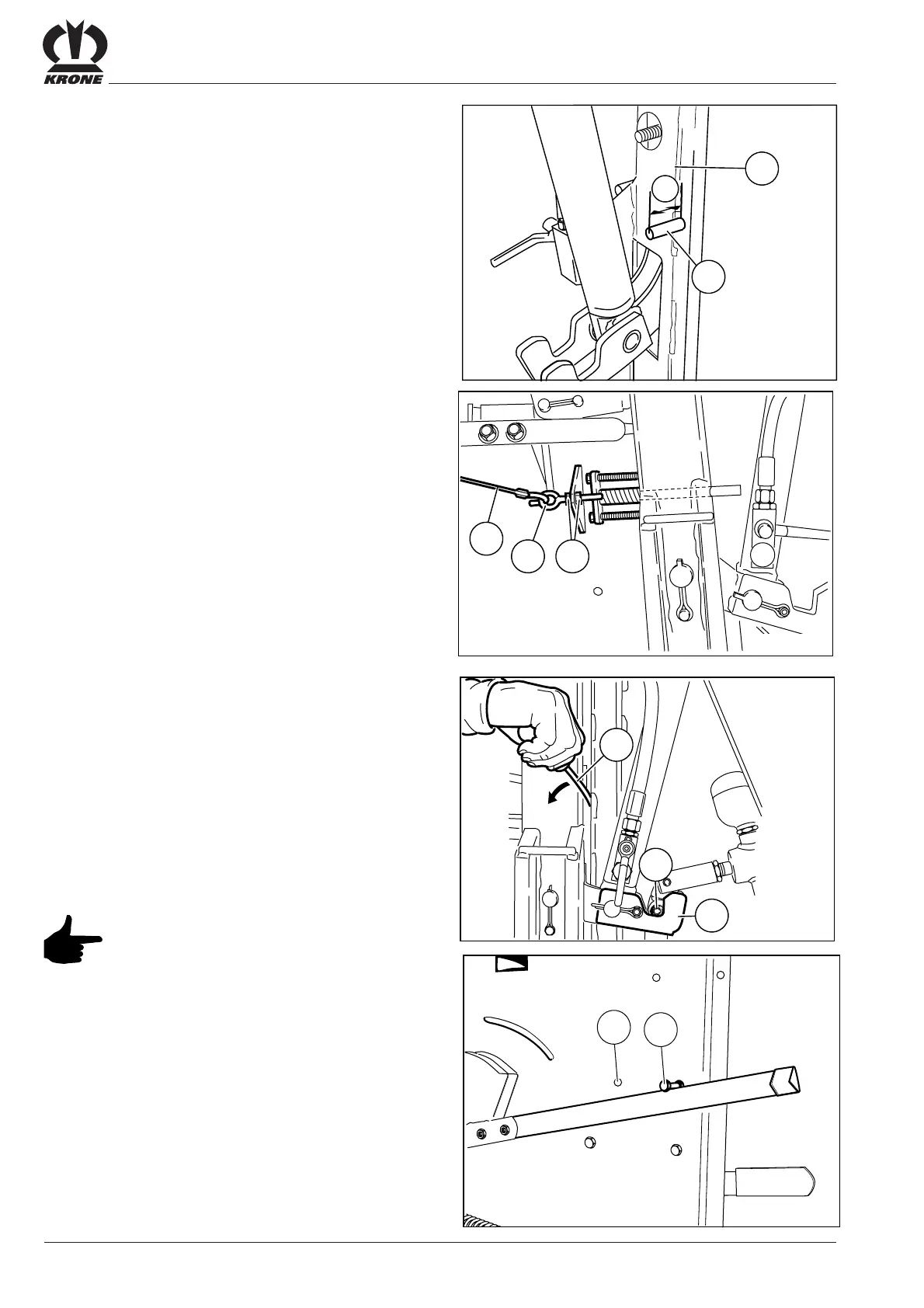

• Insert the mounting lever (1) into the gap between the
tailgate and the frame
• Press the tailgate backwards until the locking hook (3)
fits close to the clamping sleeve (2).
The baling pressure indicators can be adjusted in this
position. The upper baling pressure indicator must be
adjusted to the same position of the lower baling
pressure indicator.
RP-A-012
1
3
2
The distance a between the callipers (1) on the rear panel
hook to the bar (2) should be a = 38 mm on both sides.
Adjustment is carried out on both sides of the round baler
on the eye bolts (2), which are connected to the
applicable side's baling pressure indicators via steel
cable (1). To adjust, loosen the nuts (3), keep hold of the
eye bolt and adjust the nuts.
1
2
RP-99-004
3
RP-99-011
1
2
a
RP-99-016
1
2
In this position can be performed the 0-
setting of the baling pressure indicators
on the control unit (see section „0-setting
of the baling pressure indicators“).
• Install the stop screw (1) in the bore hole (2).
