Basic Settings and Operation

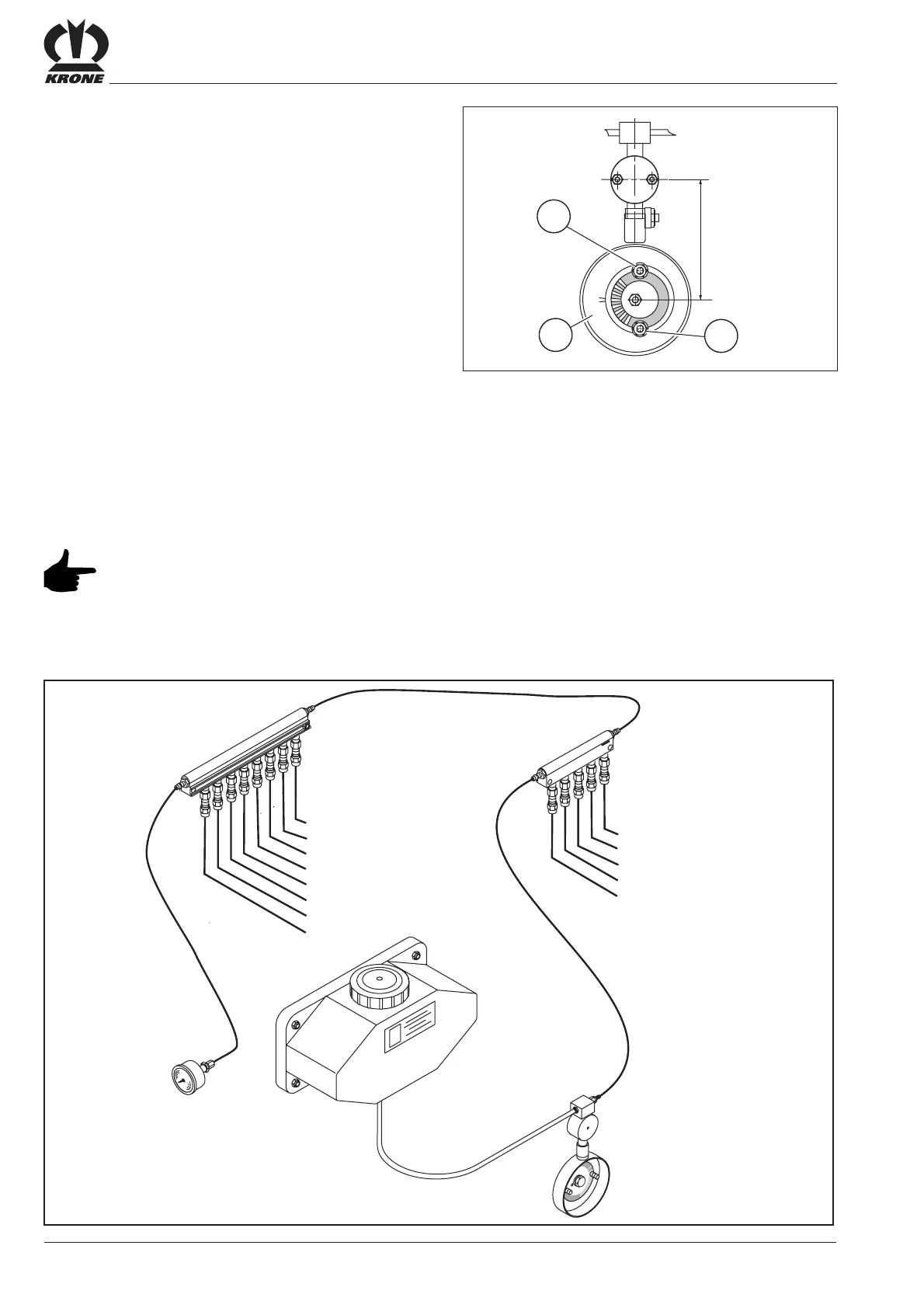

Oil Flow Rate Setting (Cam Pump)
The cam pump is located at the front left on the gearbox
drive shaft.
Adjust oil flow rate / oil pressure:
• Undo bolts (2).
• Rotate the excenter disk (1).
• Tighten bolts (2).
The numbers in brackets indicate the size of the
nozzles for the individual lubrication points.
"Central chain lubrication" diagram
(7) Floor conveyor
(7) Floor conveyor
(2) Main drive
(2) Main drive
(2) Pick-up
(7) Floor conveyor
(7) Floor conveyor
(4) Starter cylinder
(4) Spur gear
(3) Cutting system drive
(3) Cutting system drive
(2) Pick-up drive
(2) Pick-up
When replacing the nozzles, it is essential
to ensure that the correct sizes are used.
Each difference in size will double the oil
supply (example: MM4 will supply twice as
much oil as MM3).
1
2
3
4
5
6
7
8
128 mm
VP-2-001
1
2
2
