Control unit Comfort

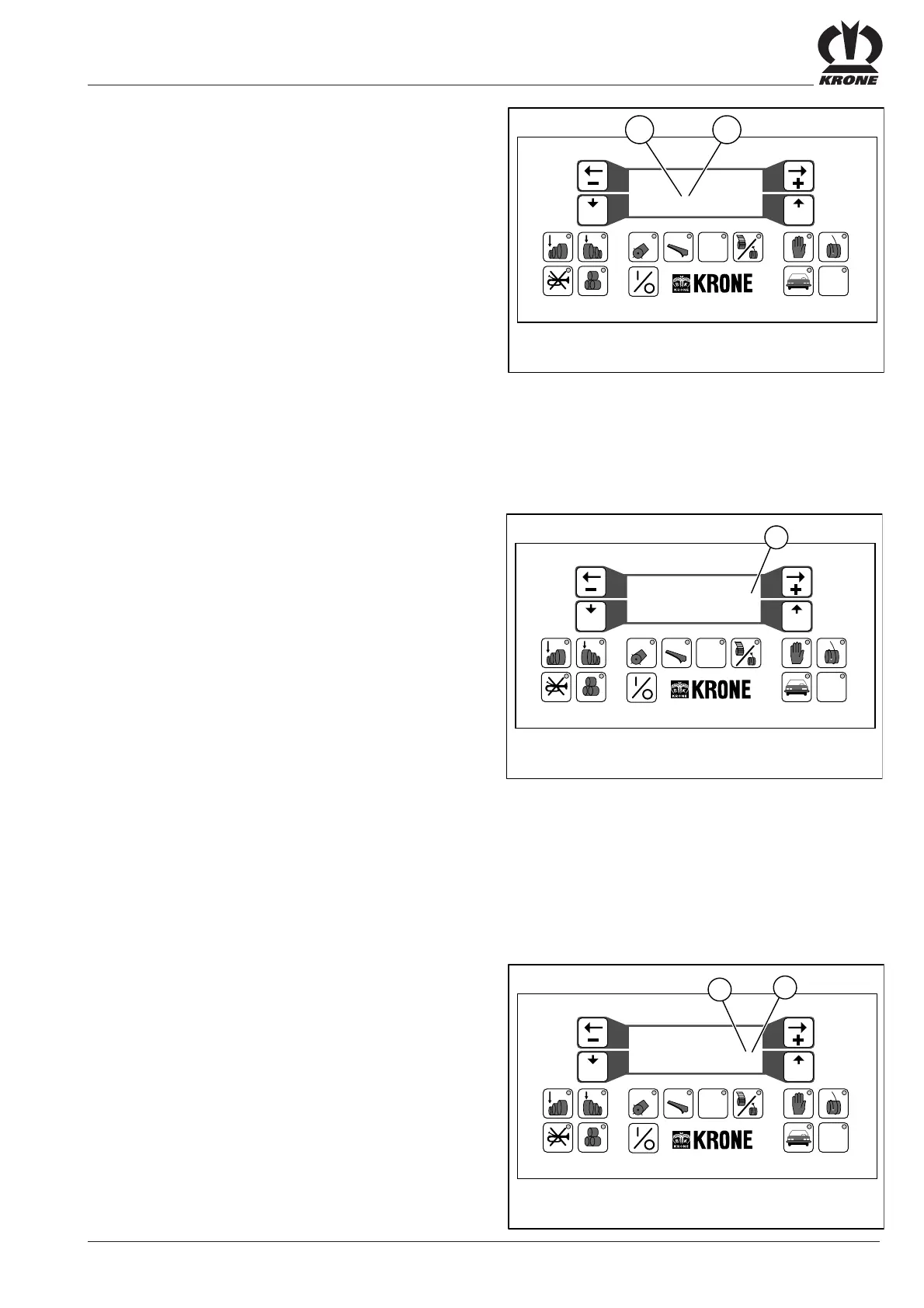

Function Test: Wrap Stop Sensors
Check the function of the sensors for the wrapping sensors
by rotating the wrapping mechanism.
Sensor 1: wrapping in progress (b)
Sensor 2: linear motor centre position (a)
During rotation of the wrapping mechanism actuating
wheel, the display reading (a) and (b) should alternate
between “0” and “1” 8 times.
Function Test: Cutting System Blade Systems
As soon as the cutting system blades are extended, the
display reading (a) should change to “0”.
Function Test: Tailgate Sensor
A sensor is located on the tailgate locking hook linkage
(left side of the machine). If a locking hook is raised, the
display reading (a) should change to “0”.
