10 TUNING THE CHASSIS 152

B01319-01

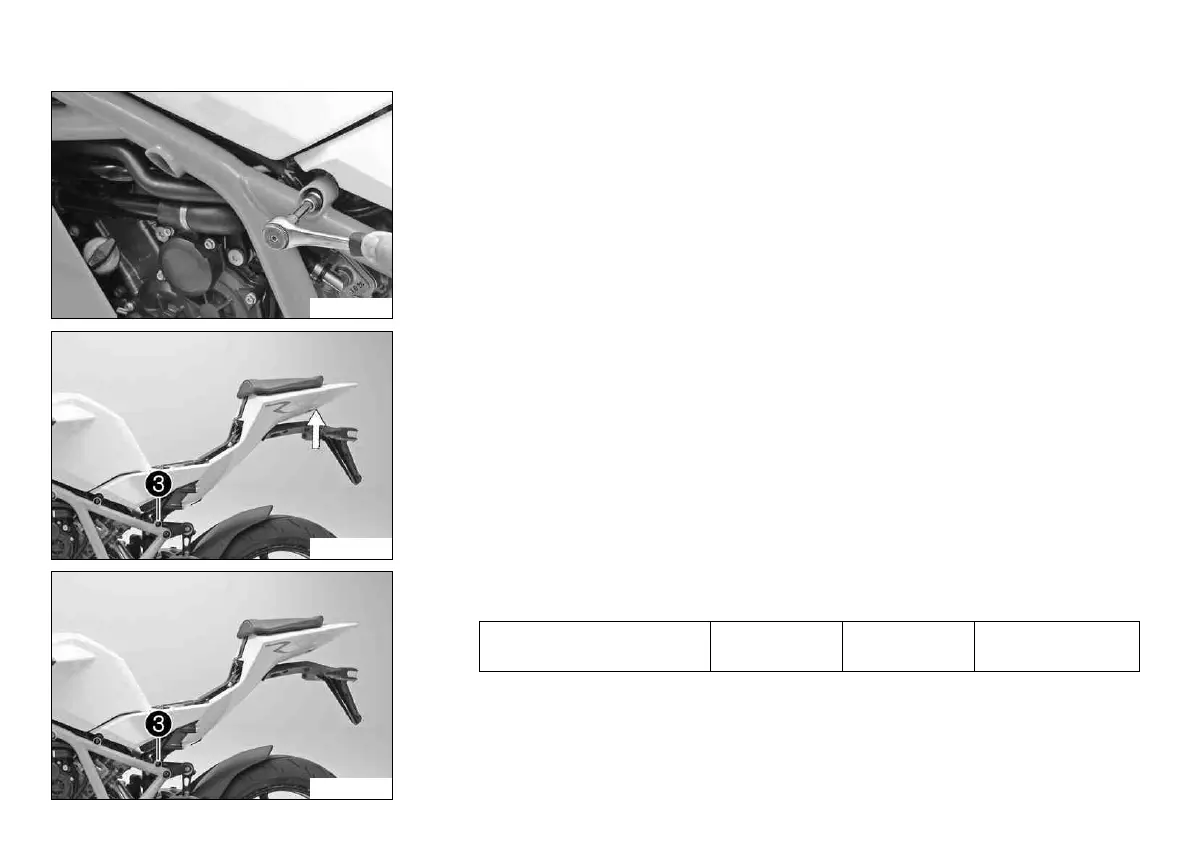

– Mount the screws with the washer on the left and right sides of the vehicle but do

not tighten yet.

B01318-11

– Remove screws 3 with the washers on the left and right sides of the vehicle.

– Push up on the subframe until the drilled holes of the frame are aligned with the

holes at the bottom rear of the subframe.

B01318-12

– Tighten screws 3 on the left and right sides of the vehicle.

Guideline

Screw, subframe M8 20 Nm

(14.8 lbf ft)

Loctite

243™
