10 TUNING THE CHASSIS 153
B01318-13

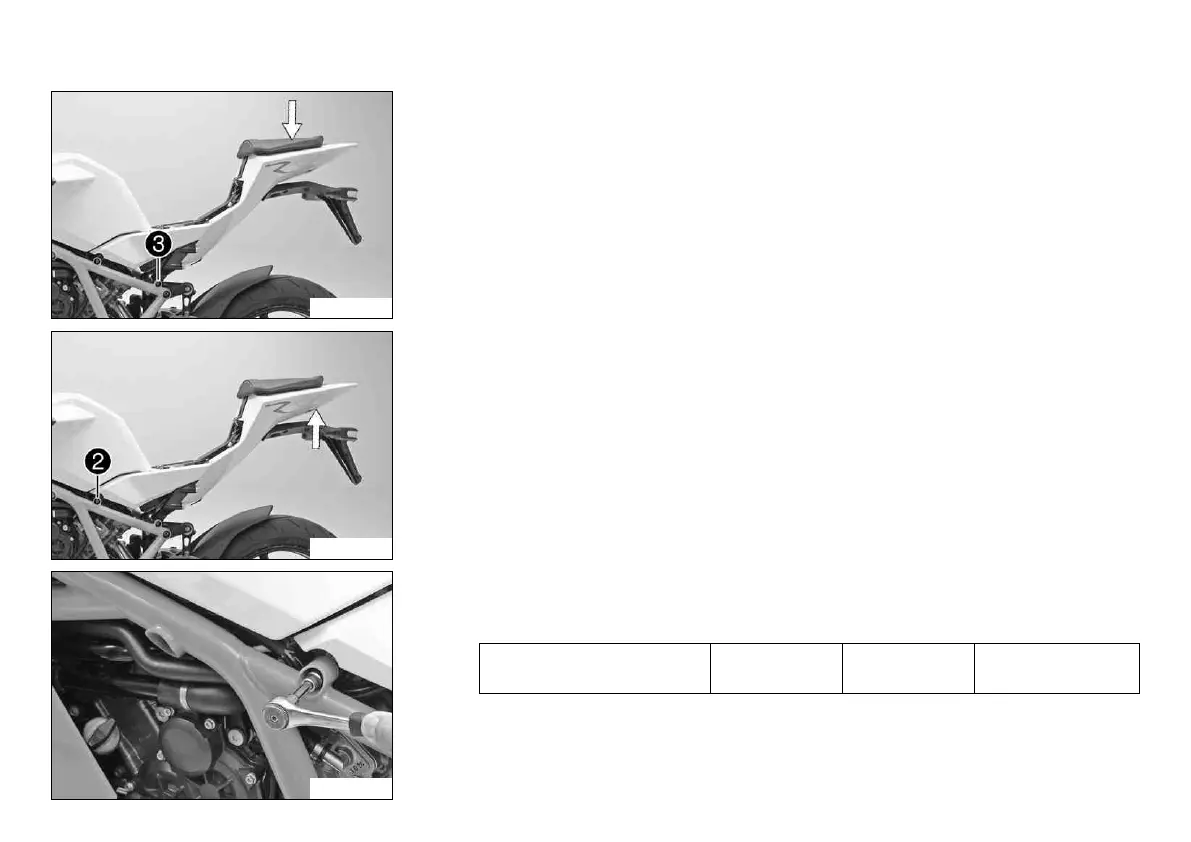

Lowering the seat position:
– Remove screws 3 with the washers on the left and right sides of the vehicle.
– Push down on the subframe until the drilled holes of the frame are aligned with the
holes at the top rear of the subframe.
– Mount the screws with the washer on the left and right sides of the vehicle but do
not tighten yet.
B01318-14
– Remove screws 2 with the washers on the left and right sides of the vehicle.
– Push up on the subframe until the drilled holes of the frame are aligned with the
holes at the top front of the subframe.
B01319-01
– Mount and tighten the screws with the washers on the left and right sides of the
vehicle.
Guideline
Screw, subframe M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
