10 TUNING THE CHASSIS 154

B01318-12

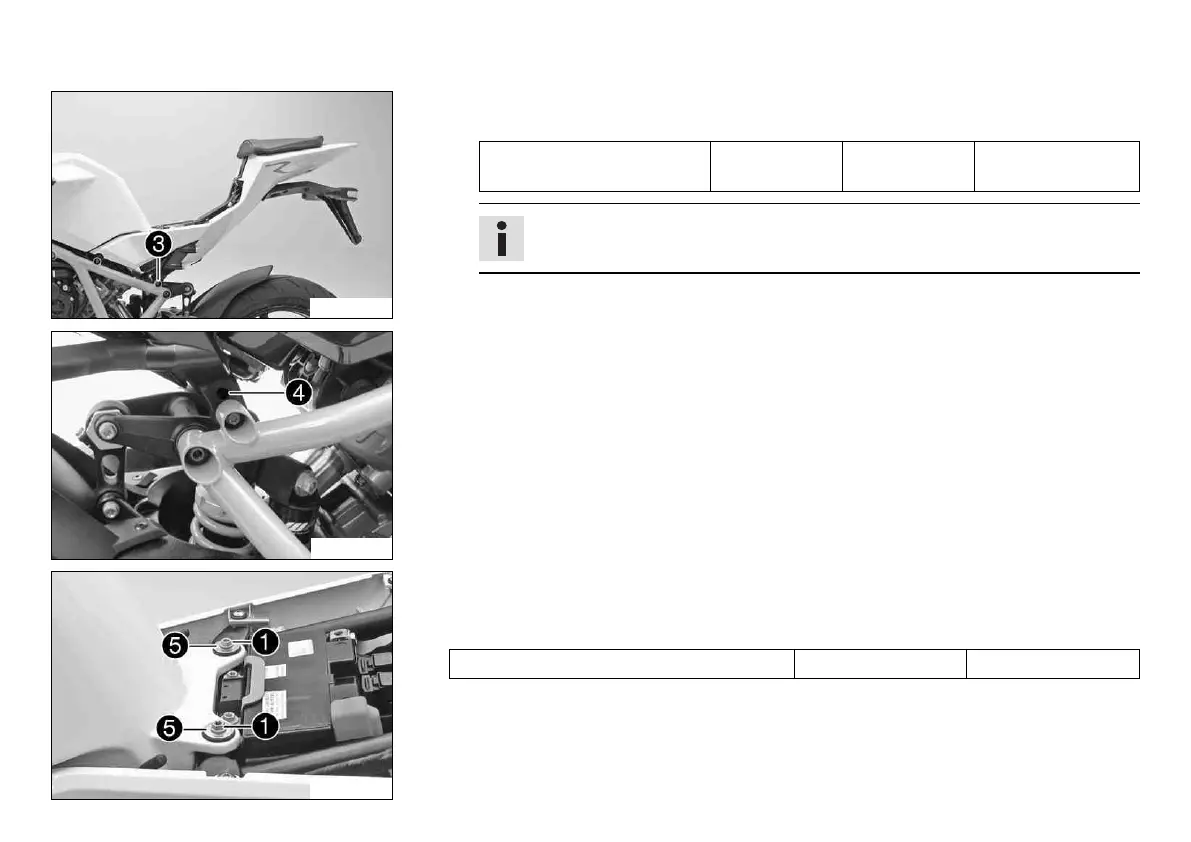

– Tighten screws 3 on the left and right sides of the vehicle.

Guideline

Screw, subframe M8 20 Nm

(14.8 lbf ft)

Loctite

243™

Info

Check the cable routing; the lambda sensor cable should not be taut.

305720-10

– Mount rubber cover 4 in the vacant threaded holes on both sides.

B01317-11

– Position bushings 5.

– Mount and tighten screws 1.

Guideline

Remaining chassis screws M6 10 Nm (7.4 lbf ft)
