11 SERVICE WORK ON THE CHASSIS 167

100710-10

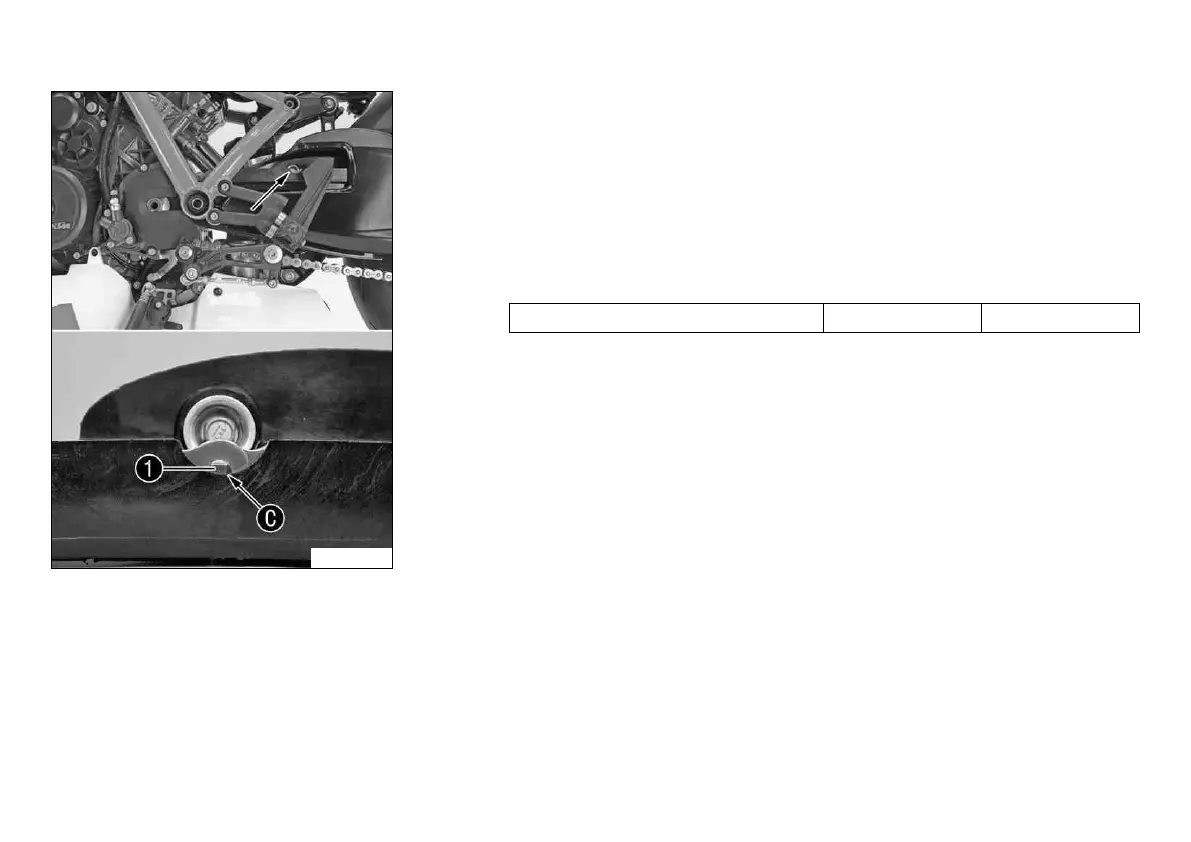

– Check the chain sliding guard for wear at the opening.

» If the rivets 1 of the chain are no longer visible at the lower edge C of the opening

of the chain sliding guard:

–

Change the chain sliding guard. x

– Check that the chain sliding guard is firmly seated.

» If the chain sliding guard is loose:

– Tighten the chain sliding guard.

Guideline

Screw, chain sliding guard M5 5 Nm (3.7 lbf ft)
