13 WHEELS, TIRES 181
C00337-10

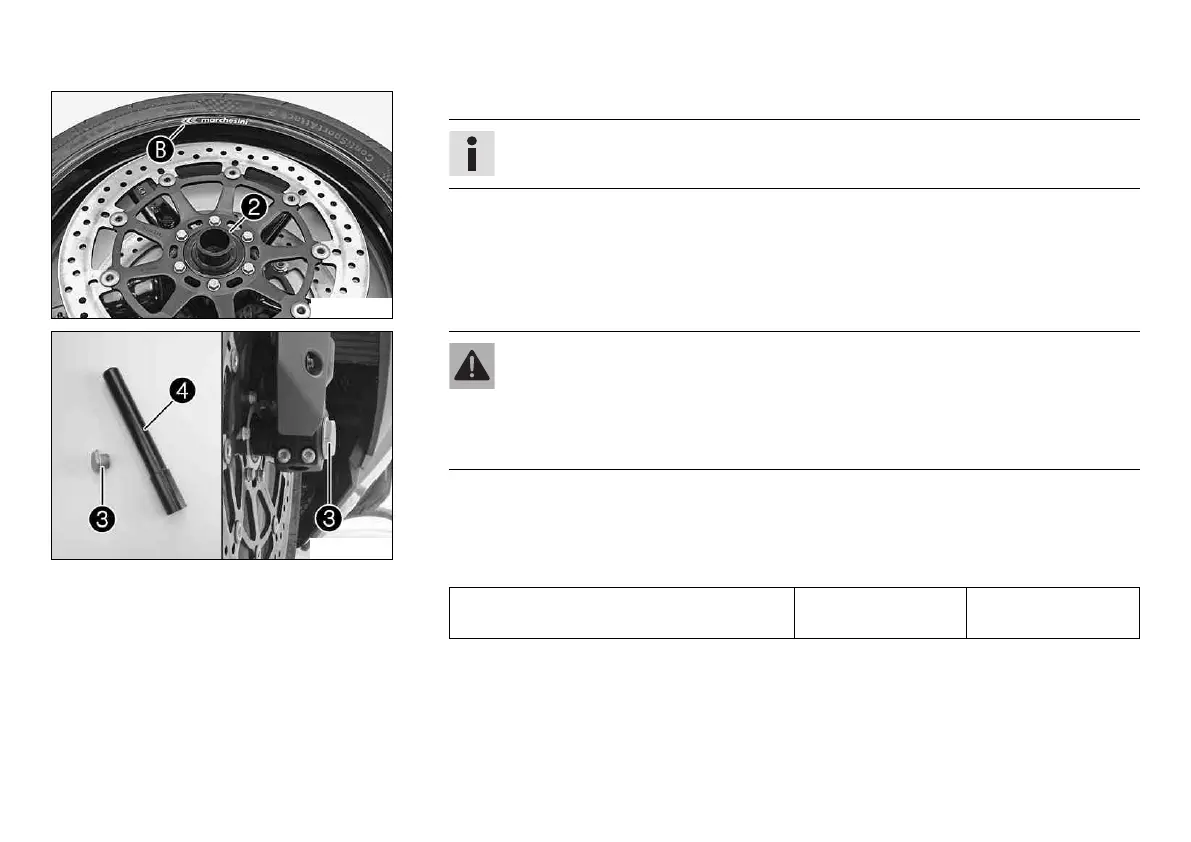

– Insert the wide spacer on the left-hand side 2 (when looking in the direction of travel).
Info
The arrow B indicates the direction of rotation of the front wheel.
– Insert the narrow spacer on the right-hand side (when viewed in the direction of travel).
B00584-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
– Clean screw 3 and axle 4.
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
– Mount and tighten screw 3.
Guideline
Bolt, front axle M25x1.5 45 Nm
(33.2 lbf ft)
