13 WHEELS, TIRES 182
C00334-11

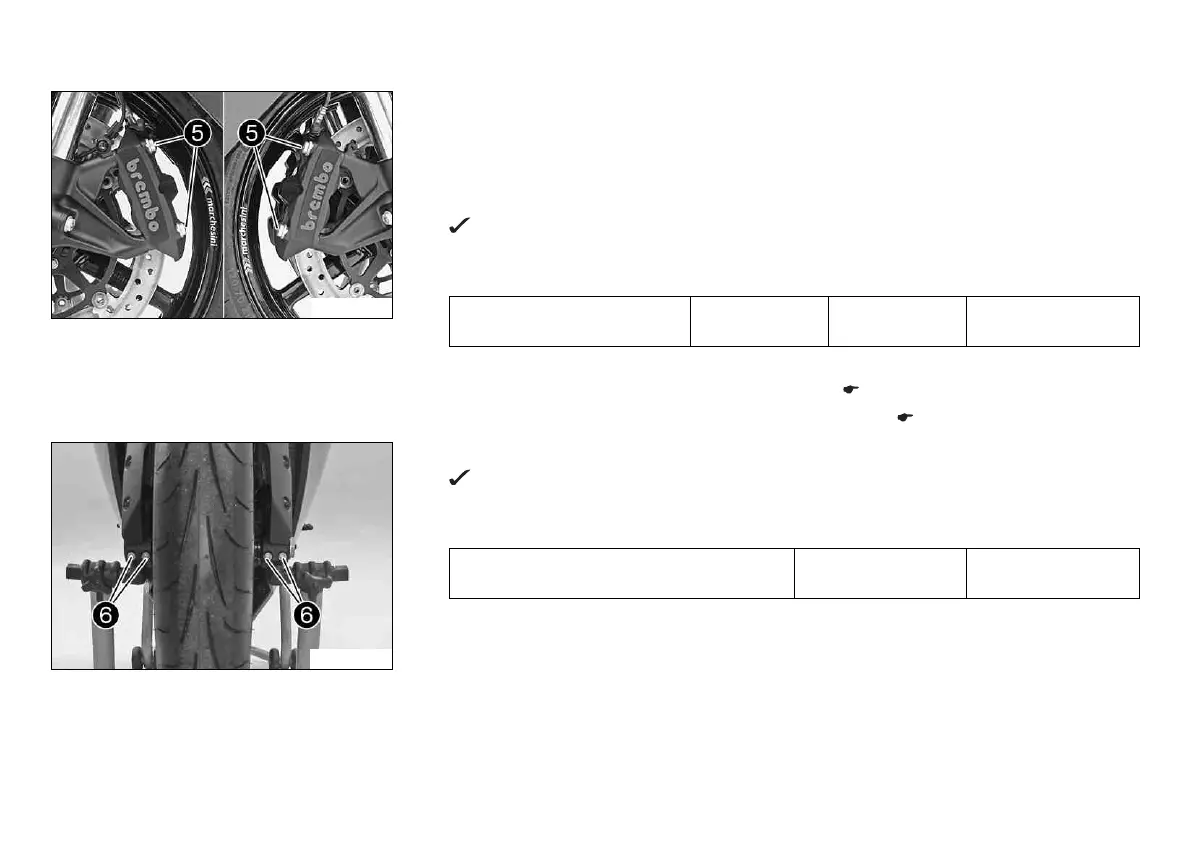

– Position the brake calipers and check that the brake linings are seated correctly.
– Mount screws 5 on both brake calipers but do not tighten yet.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point. Fixate the hand brake lever while it is actu-
ated.
The brake calipers align themselves.
– Tighten screws 5 on both brake calipers.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Release the fixation of the hand brake lever.
– Take the motorcycle off of the front wheel stand. ( p. 157)
– Remove the rear of the motorcycle from the lifting gear. ( p. 156)
B00581-11
– Pull the front brake and compress the fork powerfully a few times.
The fork legs straighten.
– Fully tighten screws 6.
Guideline
Fork end pinch bolts M8 15 Nm
(11.1 lbf ft)
