Optional equipment
Precision Seed Drills
MAXIMA 2 M
135

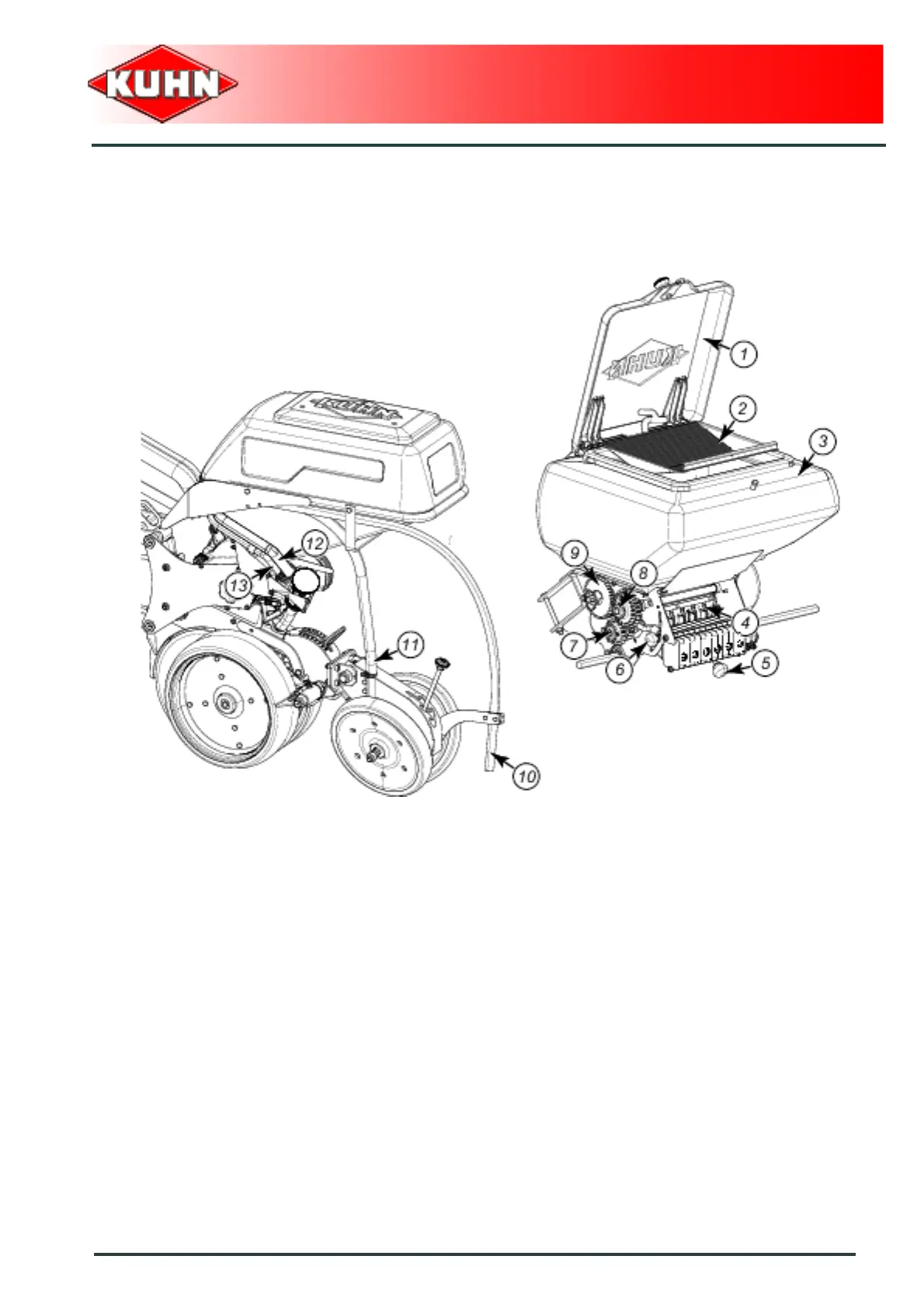

Description and glossary
0
1 : Cover 2 : Sieve
3 : Hopper 4 : Distribution
5 : Emptying lever 6 : Outlet opening lever
7 : Driven shaft 8 : Drive shaft
9 : Gearwheel storage 10 : Application of slug pellets behind the
roller
11 : Application of slug pellets in front of the
roller
12 : Application of slug pellets on the furrow
bottom
13 : Application of insecticide on the furrow bottom
