Precision Seed Drills
48
MAXIMA 2 M
Putting into service

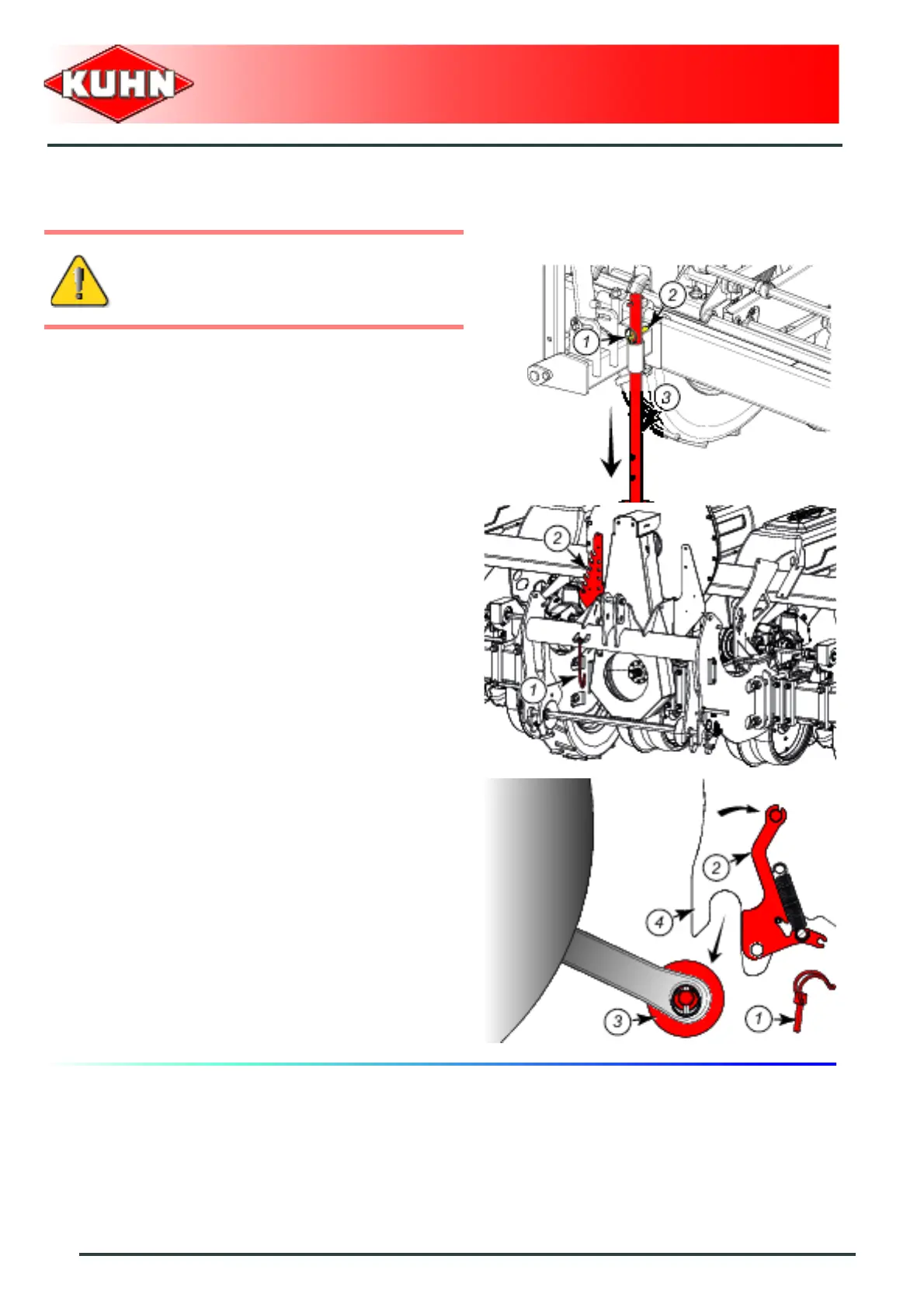

Uncoupling the machine
- Remove lynch pin (1) and pin (2).
- Lower parking stand (3).
- Insert pin (2) and lock using lynch pin (1).
- Repeat procedure on the other parking stand.
- Lower the tractor three-point linkage to rest the
machine on the ground.
- Uncouple and place PTO shaft in support (1).
- Disconnect and store hydraulic hoses in holder (2).
- Disconnect and store signalling electric plug on holder
(2).
- Disconnect and store control boxes in a dry and clean
place.
- Detach the top link from the machine end.
- Remove lynch pins (1) (1 on each machine side).
- Pivot lock (2).
- Lower tractor lower links to disengage hitch bar (3)
from the machine semi-automatic attachment (4).
- Insert and lock lynch pin (1) (1 on each machine side).
The machine is uncoupled.
Park the machine on an even fairly level
ground.
