104 / 127 Issued: 18.06.2015 Version: Spez KR QUANTEC extra V6
KR QUANTEC extra
To ensure that the anchor forces are safely transmitted to the foundation, ob-
serve the dimensions for concrete foundations specified in the following illus-
tration.

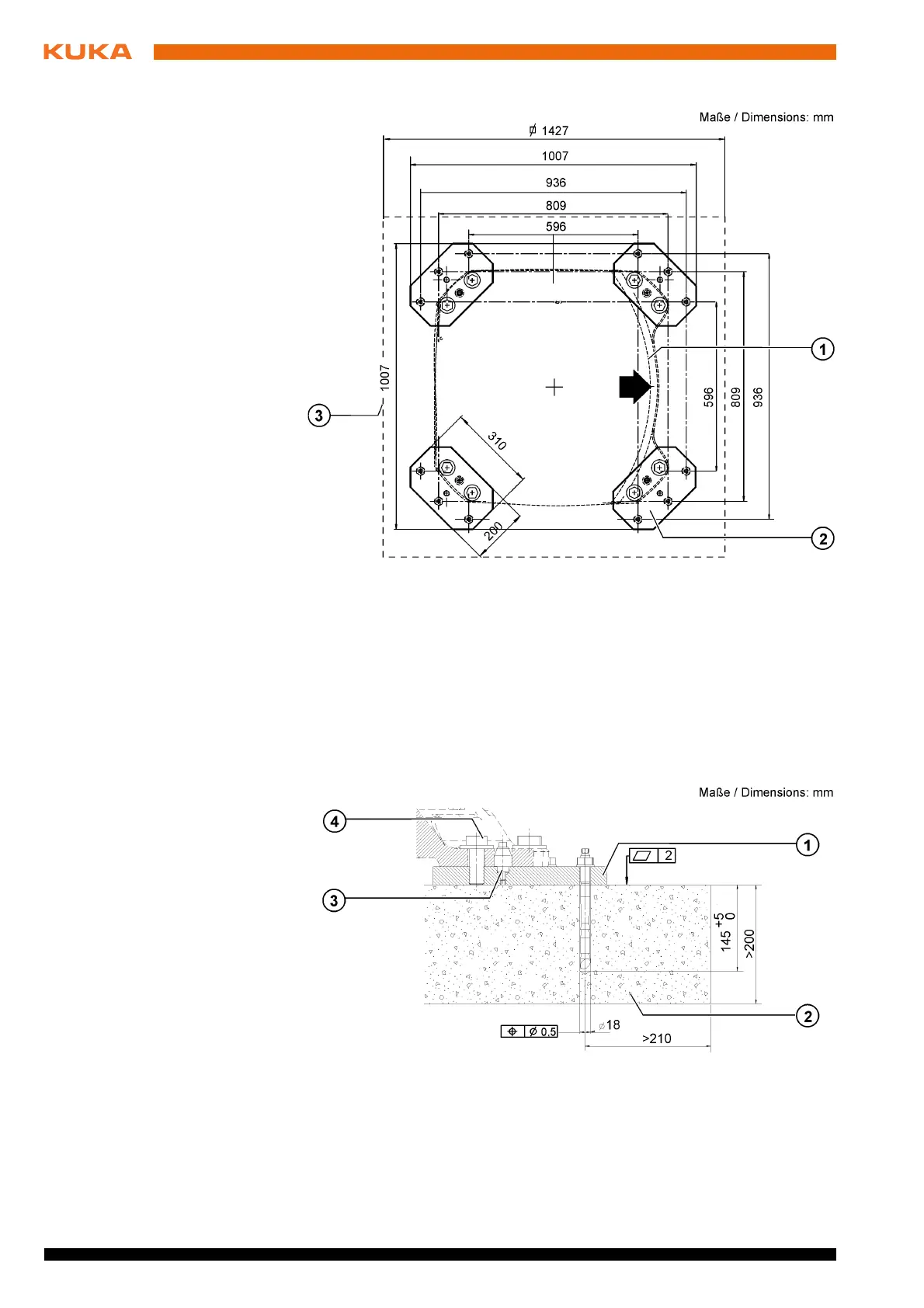

Fig. 6-2: Mounting base, dimensioned drawing
1 Robot
2 Bedplate
3 Concrete foundation
Fig. 6-3: Cross-section of foundations
1 Bedplate 3 Pin
2 Concrete foundation 4 Hexagon bolt
