27 / 127Issued: 18.06.2015 Version: Spez KR QUANTEC extra V6
4 Technical data
* Valid for F-HP in-line wrist
4.3 Payloads
The following data apply to the corresponding robots, irrespective of the instal-
lation position (C variant) or equipment (F variant).

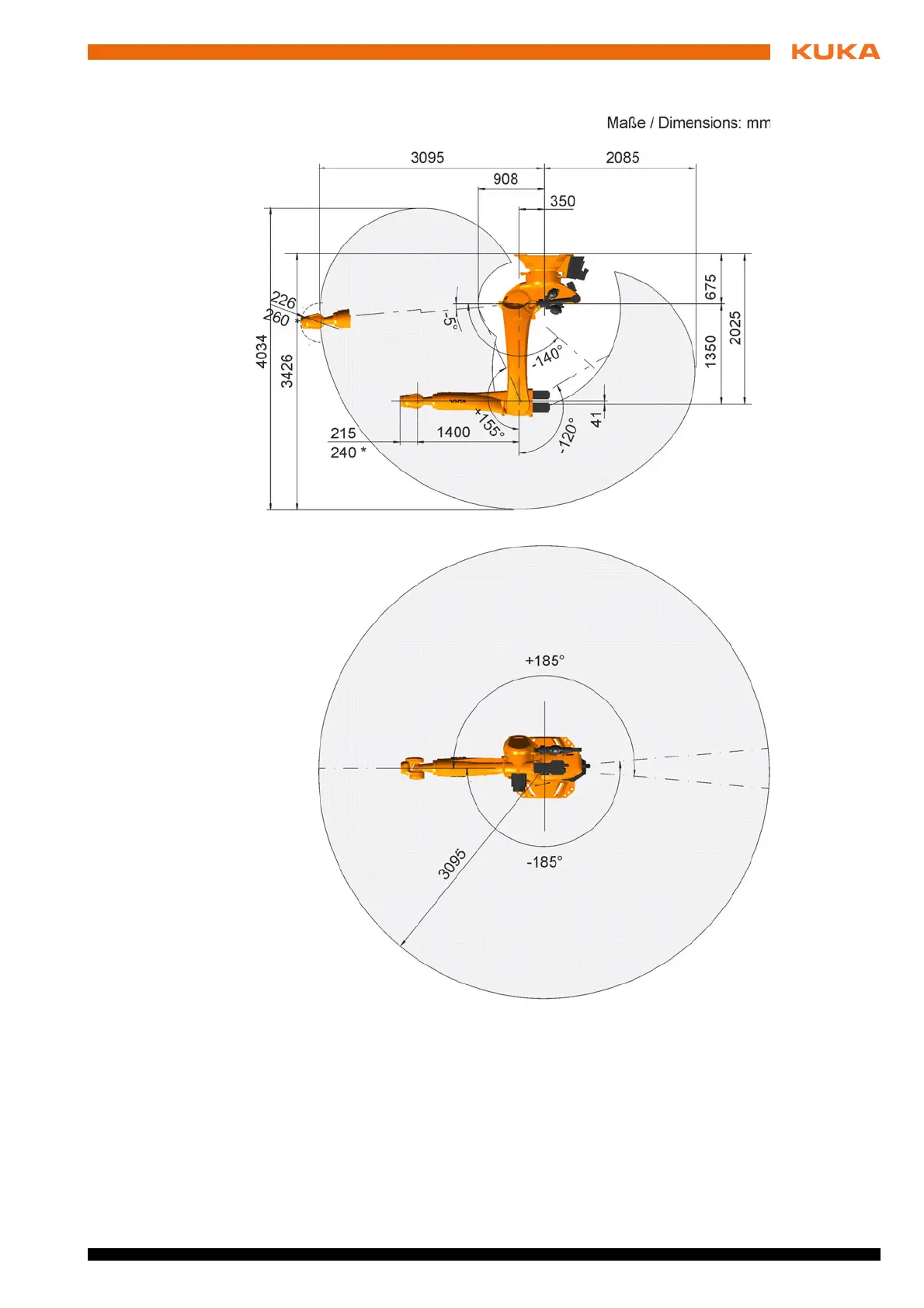

Fig. 4-9: Working envelope, KR 90 R3100 C extra
