6.1 Mounting base with centering
Description The mounting base with centering is used when the robot is fastened to the
floor, i.e. directly on a concrete foundation.
The mounting base with centering consists of:
Bedplates
Resin-bonded anchors (chemical anchors)
Fastening elements
This mounting variant requires a level and smooth surface on a concrete foun-
dation with adequate load bearing capacity. The concrete foundation must be
able to accommodate the forces occurring during operation. There must be no
layers of insulation or screed between the bedplates and the concrete founda-
tion.
The minimum dimensions must be observed.
Grade of concrete
for foundations
When producing foundations from concrete, observe the load-bearing capac-
ity of the ground and the country-specific construction regulations. There must
be no layers of insulation or screed between the bedplates and the concrete
foundation. The quality of the concrete must meet the requirements of the fol-
lowing standard:
C20/25 according to DIN EN 206-1:2001/DIN 1045-2:2008
Dimensioned
drawing
The following illustrations provide all the necessary information on the mount-
ing base, together with the required foundation data.

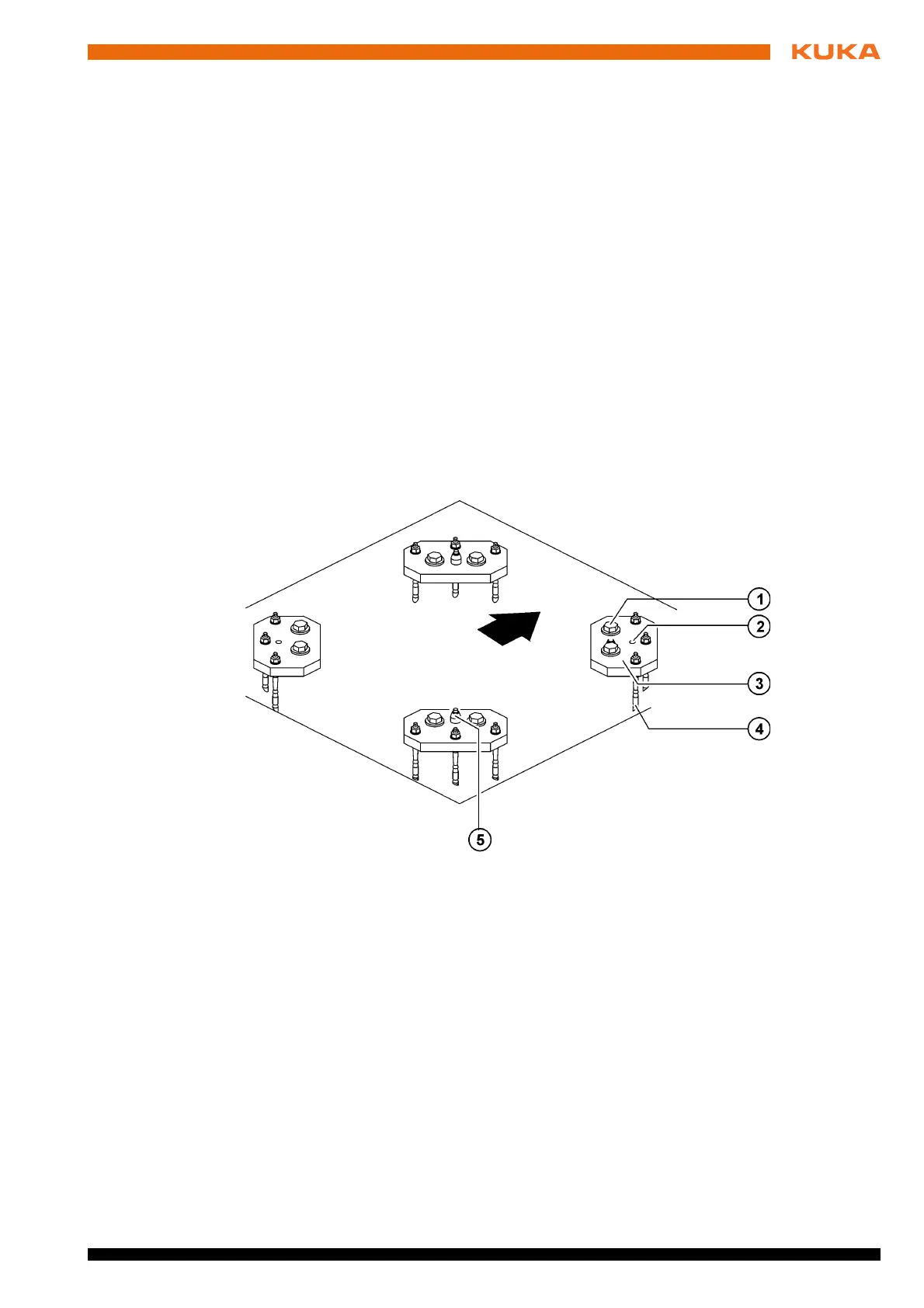

Fig. 6-1: Mounting base
1 Hexagon bolt 4 Resin-bonded anchors with
Dynamic Set
2 M20 thread for mastering
screw
5 Pin with Allen screw
3 Bedplate
