2M4/2M5/2M6/2M7

1-5-14

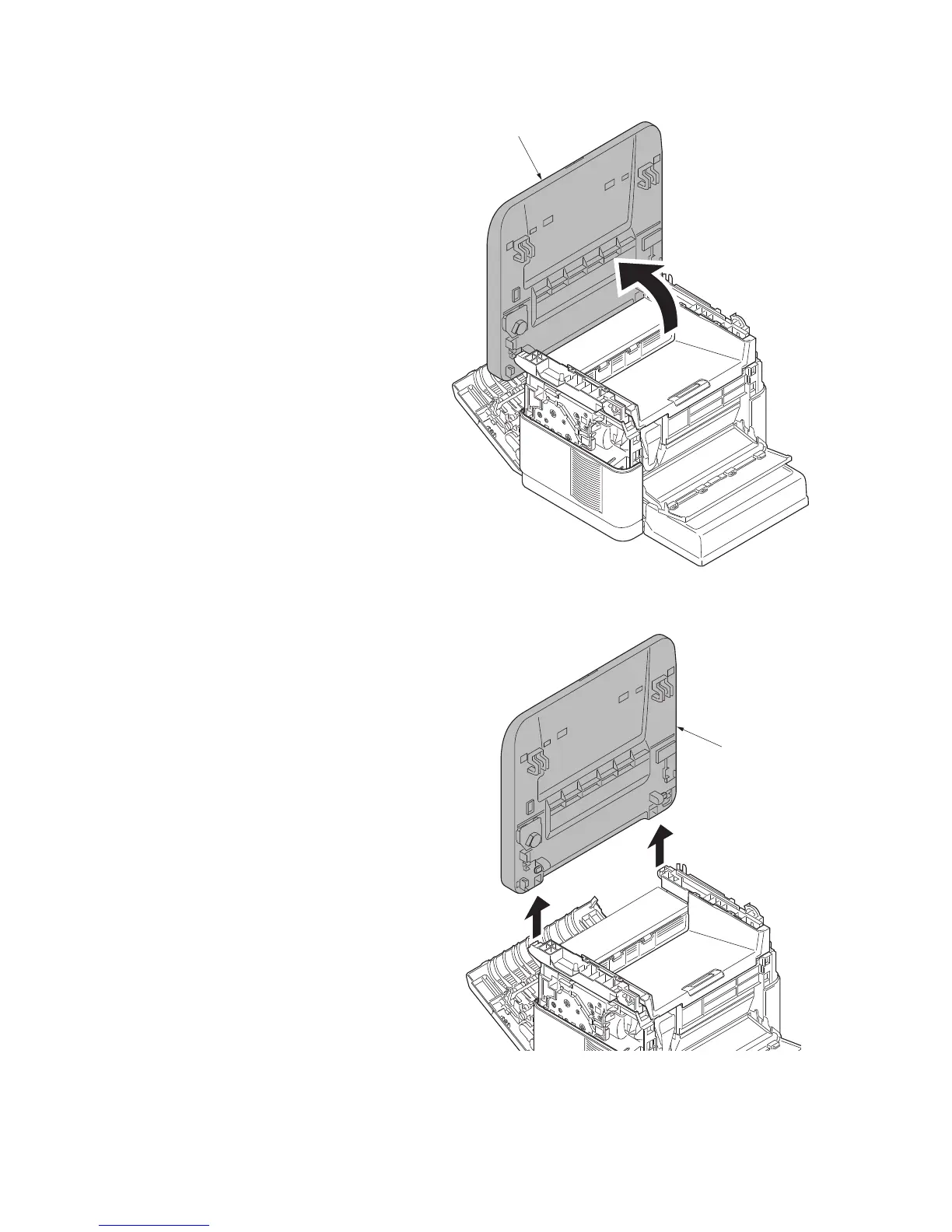

11. Open the scanner unit.

Figure 1-5-19

12. Lift the scanner unit and remove.

Figure 1-5-20

Scanner unit

Scanner unit
