2-1-6 Fuser section
The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller.
The heat roller is heated by the fuser heater (FH), and the toner is fused by heat and pressure and fixed onto
the paper because the press roller is pressed by the fuser press spring. The surface temperature of heat roller
and press roller are detected by the fuser thermistor (FTH) and controlled by the main PWB (MPWB).

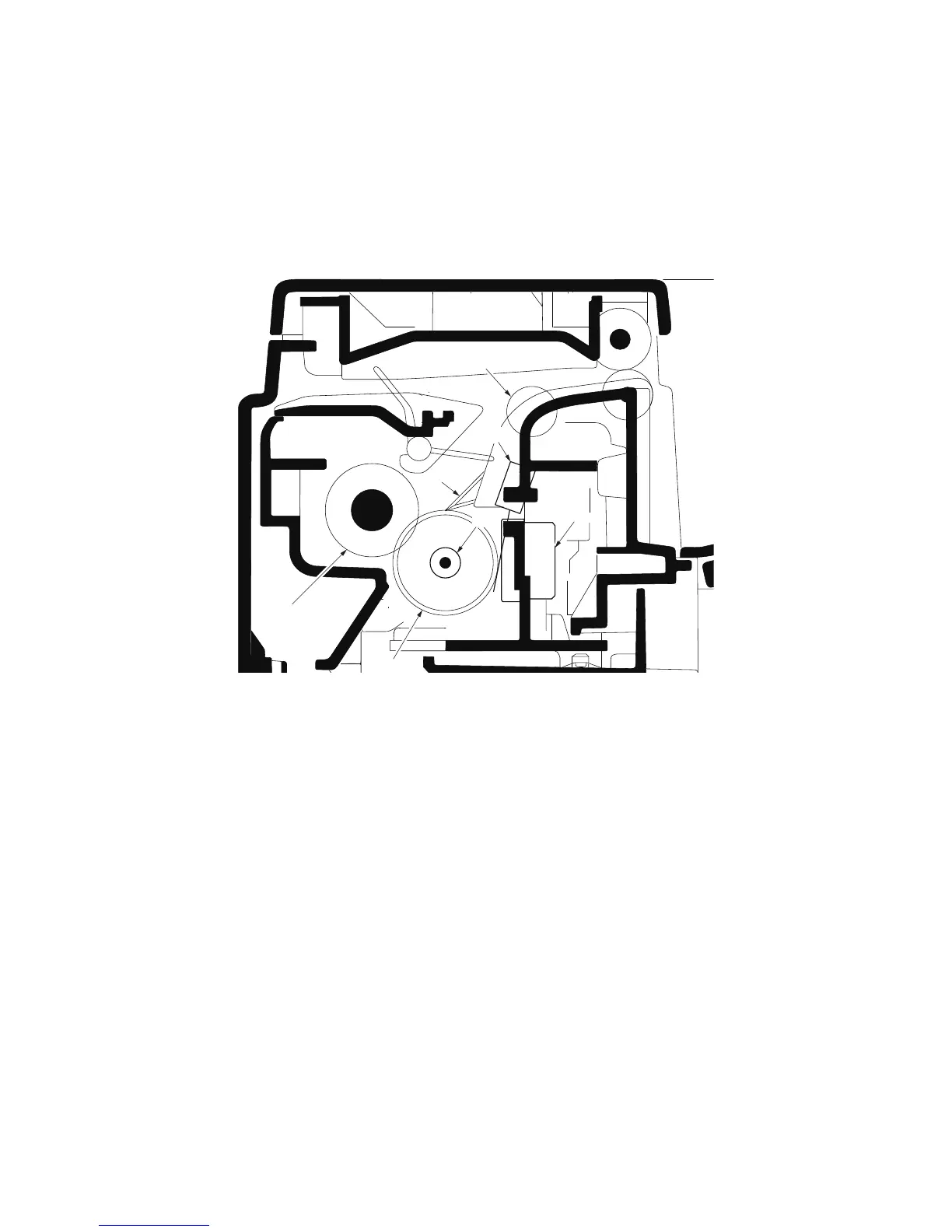

Figure 2-1-15 Fuser section
1
2
4
6
7
5
3
1. Heat roller
2. Press roller
3. Fuser heater (FH)
4. Fuser thermostat (FTS)
5. Fuser thermistor (FTH)
6. Separators
7. Fuser pulley

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
