Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
1-5-17
1-5-4 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the right upper cover, rear
upper cover R, left upper cover and rear
upper cover L
(see page 1-5-3,see page 1-5-4).
2. Remove the main PWB (see page 1-5-
18).
3. Remove connector from the fuser
heater.

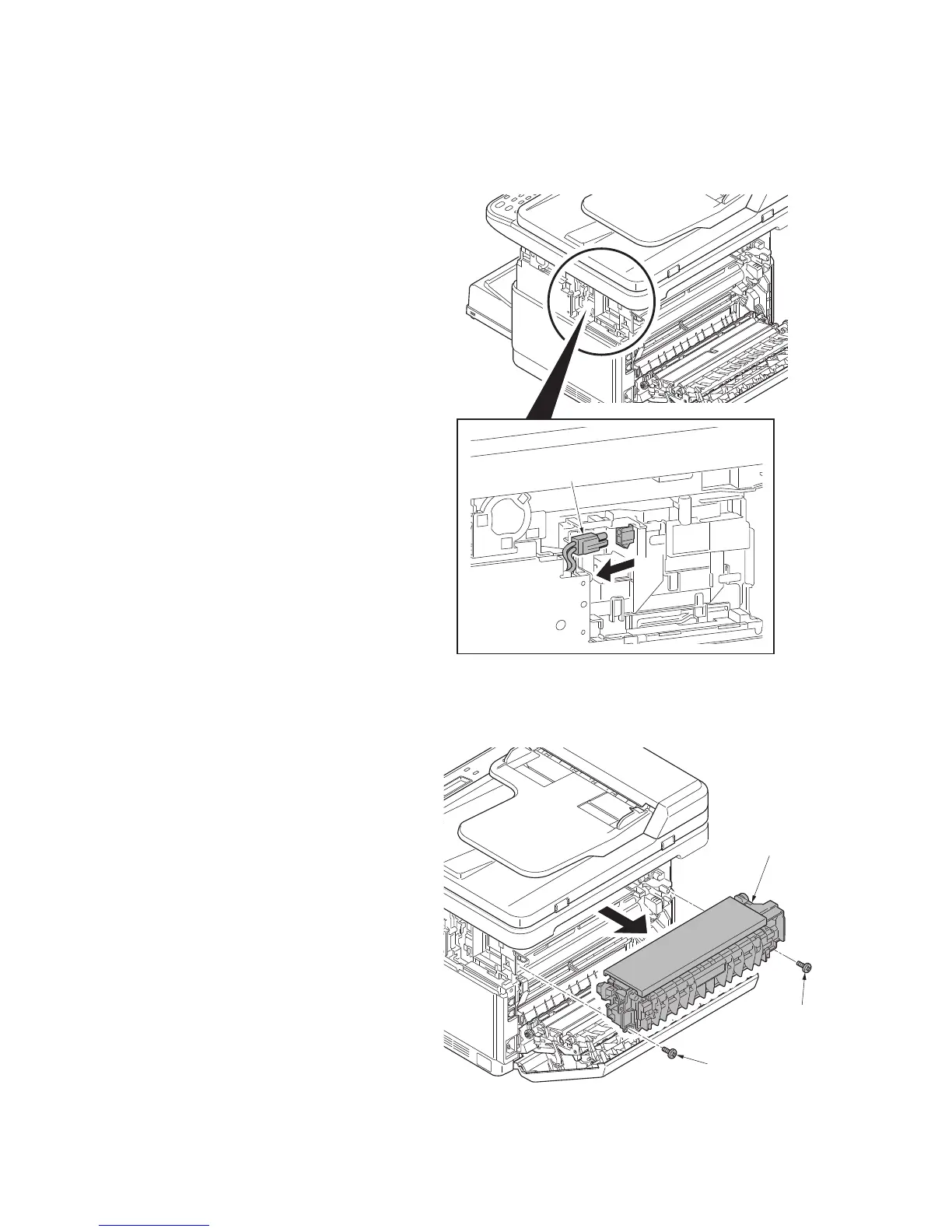

Figure 1-5-24
4. Remove two screws and then remove
the fuser unit.
5. Check or replace the fuser unit and refit
all the removed parts.
Caution: Do not close the rear cover
while the fuser unit is not installed, oth-
erwise, the cover-open detecting lever
may be damaged.
Figure 1-5-25
Connector (Fuser heater)
Fuser unit
Screw
Screw

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
