(3) Detaching and refitting the DP Separation pad
Procedure
1. Open the DP top cover.
2. Unhook the two hooks and then remove
the DP Separation pad.
3. Check or replace the DP Separation
pad, and refit all the removed parts.

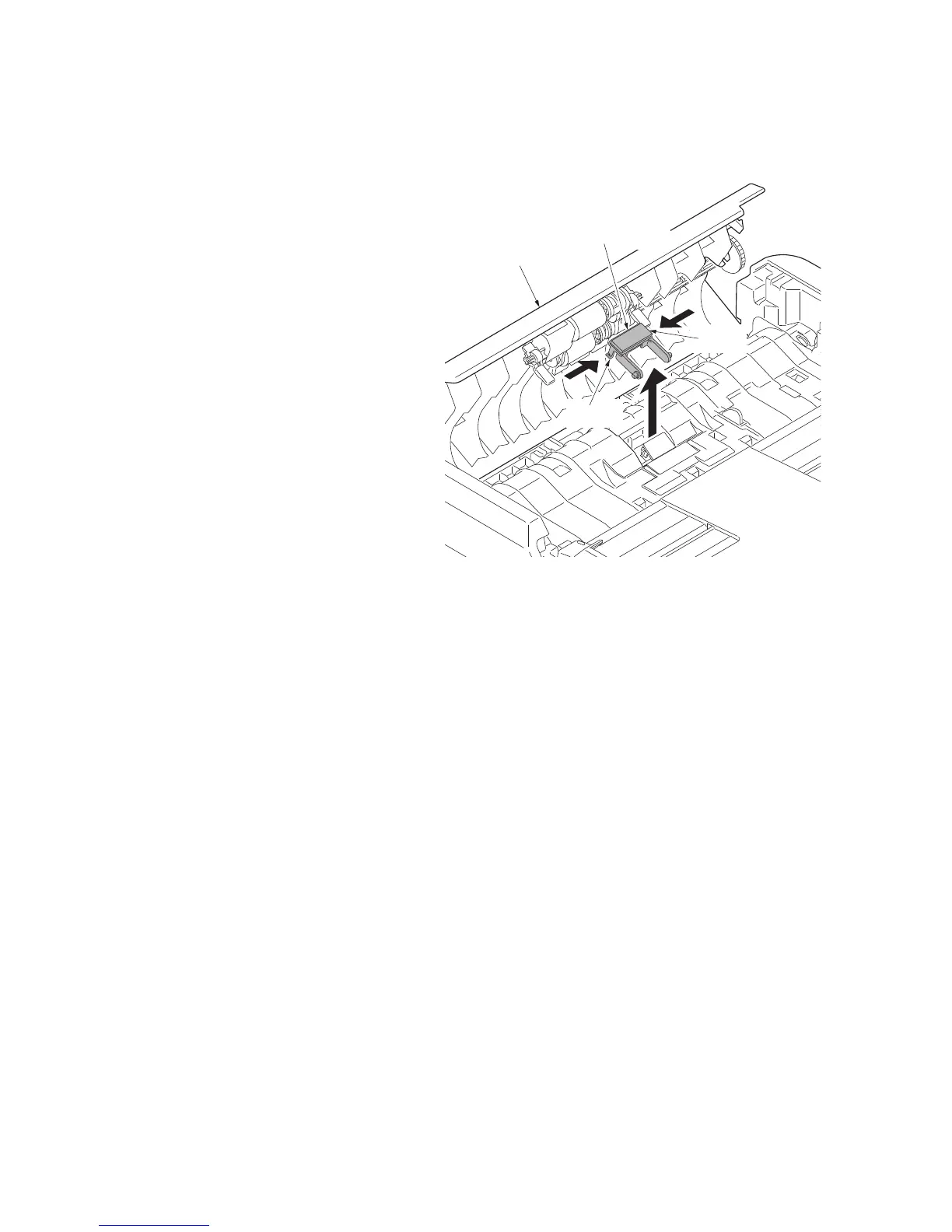

Figure 1-5-45
DP top cover
DP Separation pad
Hook
Hook
