4. Remove the DP forward roller axle from
the DP paper feed roller unit and
remove the DP forward roller, collars,
and gears.
5. Remove the DP roller axle from the DP
feed roller unit and remove the DP
roller, collars, gears and Bush.
6. Check or replace the DP forward roller
and DP paper feed roller, and refit all
the removed parts.

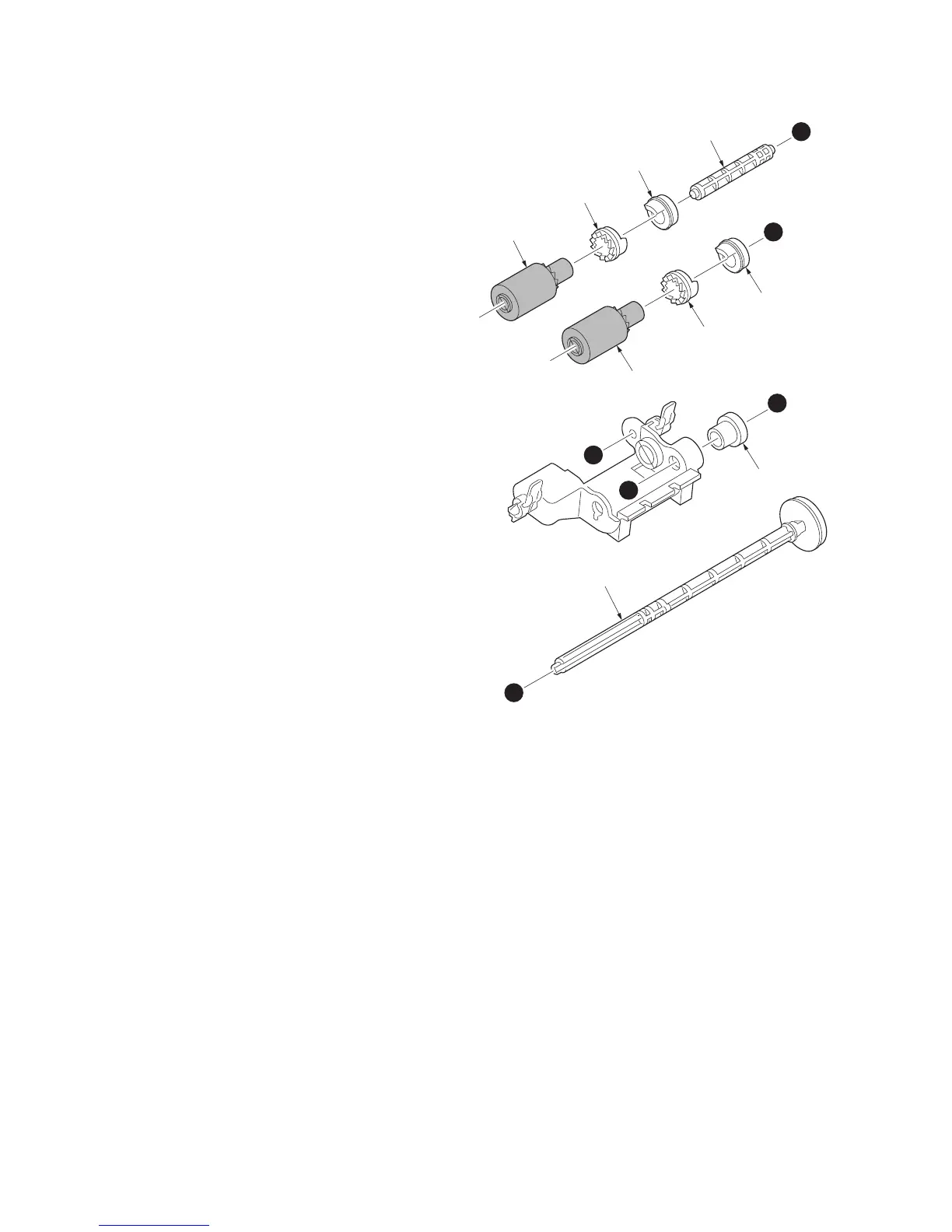

Figure 1-5-44
C
C
A
A
B
B
Collar
Collar
gear
gear
Bush
DP forwarding roller
DP paper feed roller
DP forward roller axle
DP paper feed roller axle
