2M4/2M5/2M6/2M7-1
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
If paper jams in the paper conveying system, or no paper sheets are fed at all, the machine automatically
goes offline, and the Attention indicator will flash. A jam code is logged on the event log. When the jammed
paper is removed and the rear cover is closed, the machine reverts to normal operation and resumes printing.

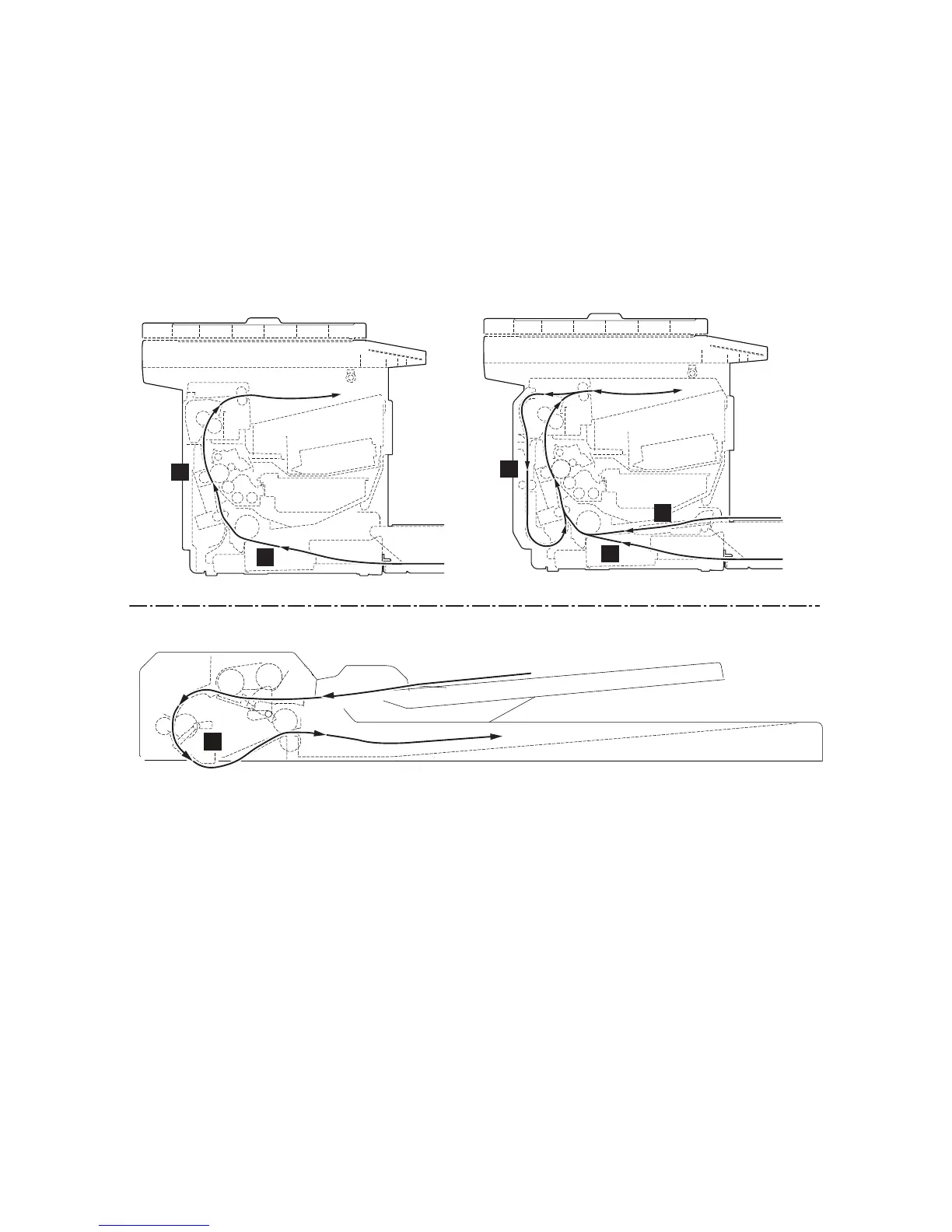

Figure 1-4-1 Paper misfeed indication
A
B
A
B
C
20/21 ppm model 25/26 ppm model
D
DP
A. Misfeed in conveying unit or duplex section
B. Misfeed in cassette
C. Misfeed in Manual Feed tray
D. Misfeed in Document processor (DP)
