(7) Refitting the toner disposal box
Procedure
1. Open the rear cover.

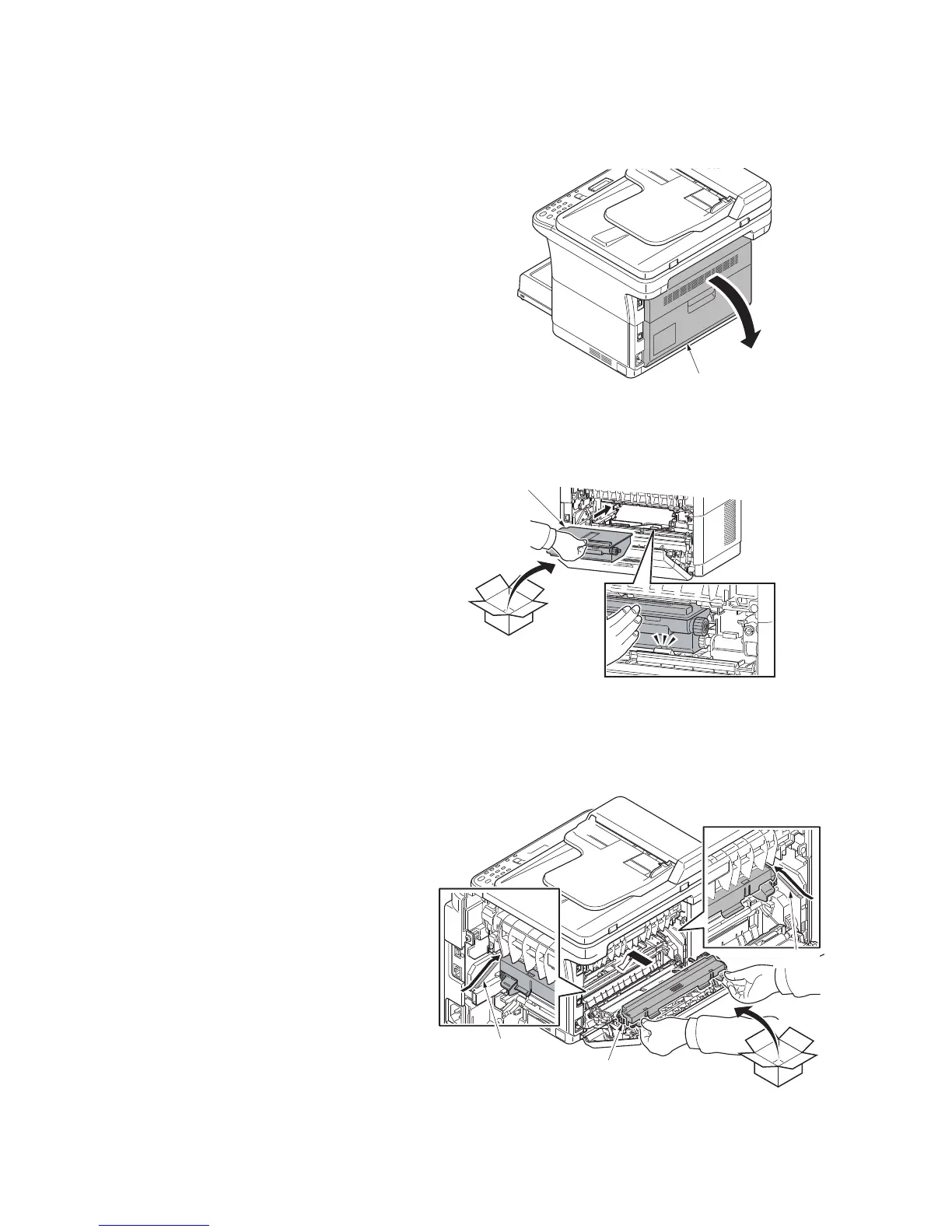

Figure 2-4-24
2. Install the new toner disposal box in the
machine.
Figure 2-4-25
(8) Refitting the developer unit
Procedure
1. Install the new developer unit in the
machine by holding both of its ends.
Insert the unit along the guides on both
sides.
Figure 2-4-26
Rear cover
Toner disposal box
Guide
Guide
Developer unit
