2-4-2 Procedure for replacing Maintenance kit
(1) Checking the components included and preparing the paper-feed replacement
unit for installation
Procedure
1. Unpack the maintenance kit and
remove the disposal box.
2. Remove the transfer roller, and then
remove the top spacer.

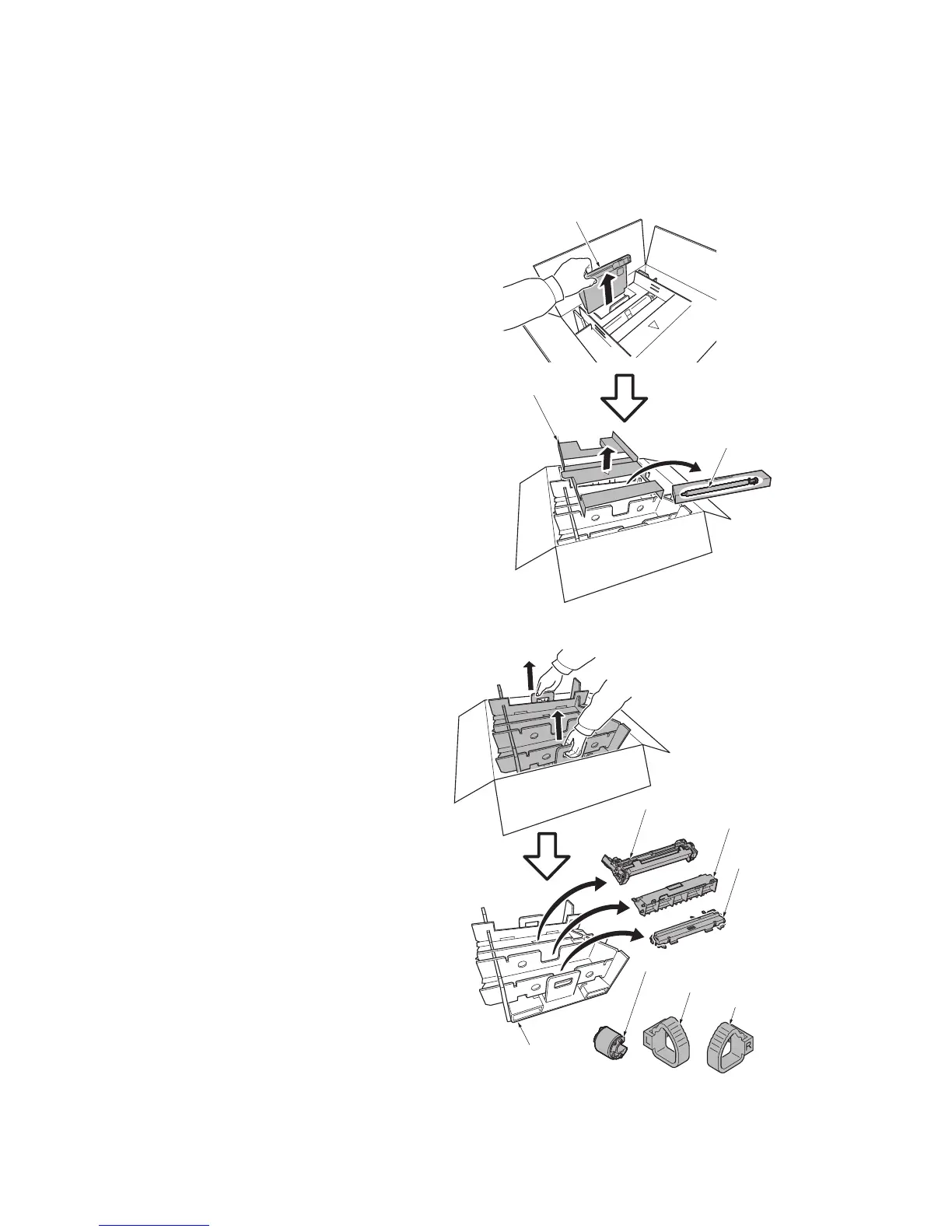

Figure 2-4-1
3. Hold the left and right handholds and
take the paper-feed replacement unit
out.
4. Remove the developer unit, Lower
paper feed guide, drum unit, paper feed
pulley and handle R/L.
Figure 2-4-2
Disposal box
Transfer roller
Top spacer
Handle R
Handle L
Paper feed pulley
Developer unit
Drum unit
Lower paper feed guide
Paper-feed
replacement unit
