Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
2-1-4
2-1-2 Drum section
The drum section consists of the charger roller, drum and cleaning section. The drum is electrically charged
uniformly by means of a charger roller to form a latent image on the surface. The cleaning section consists of
the cleaning blade and the drum screw which remove residual toner from the drum surface after transfer. The
eraser lamp (ELPWB) consists of LEDs and removes residual charge on the drum before main charging.

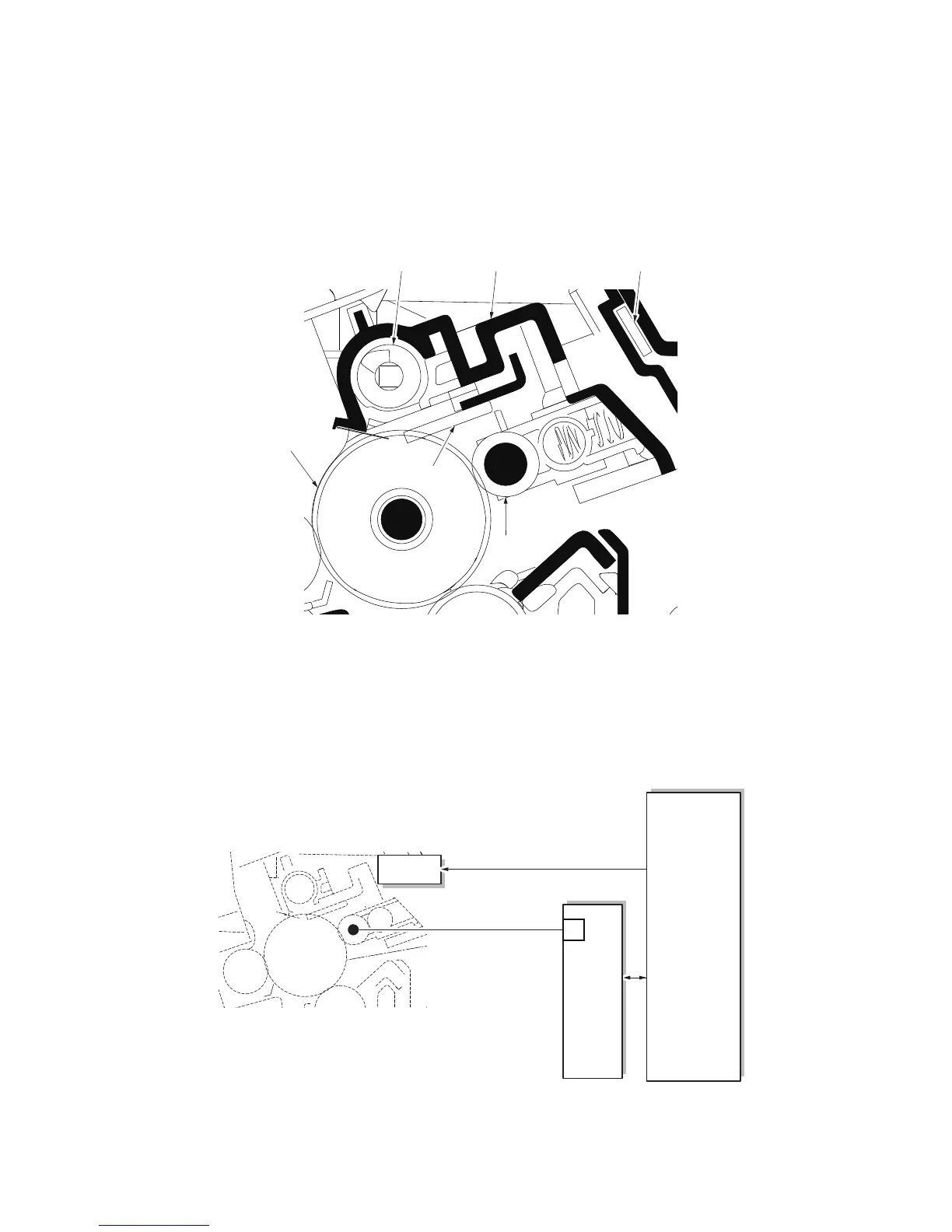

Figure 2-1-4 Drum section
Figure 2-1-5 Drum section block diagram
1
2
3
4
6
5
1. Drum
2. Charger roller
3. Drum frame
4. Cleaning blade
5. Drum screw
6. Eraser lamp (ELPWB)
MPWB
HVPWB
ERASER
YC20-2
YC13
Drum unit
ELPWB
Main charger output
M

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
