Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
1-1-10

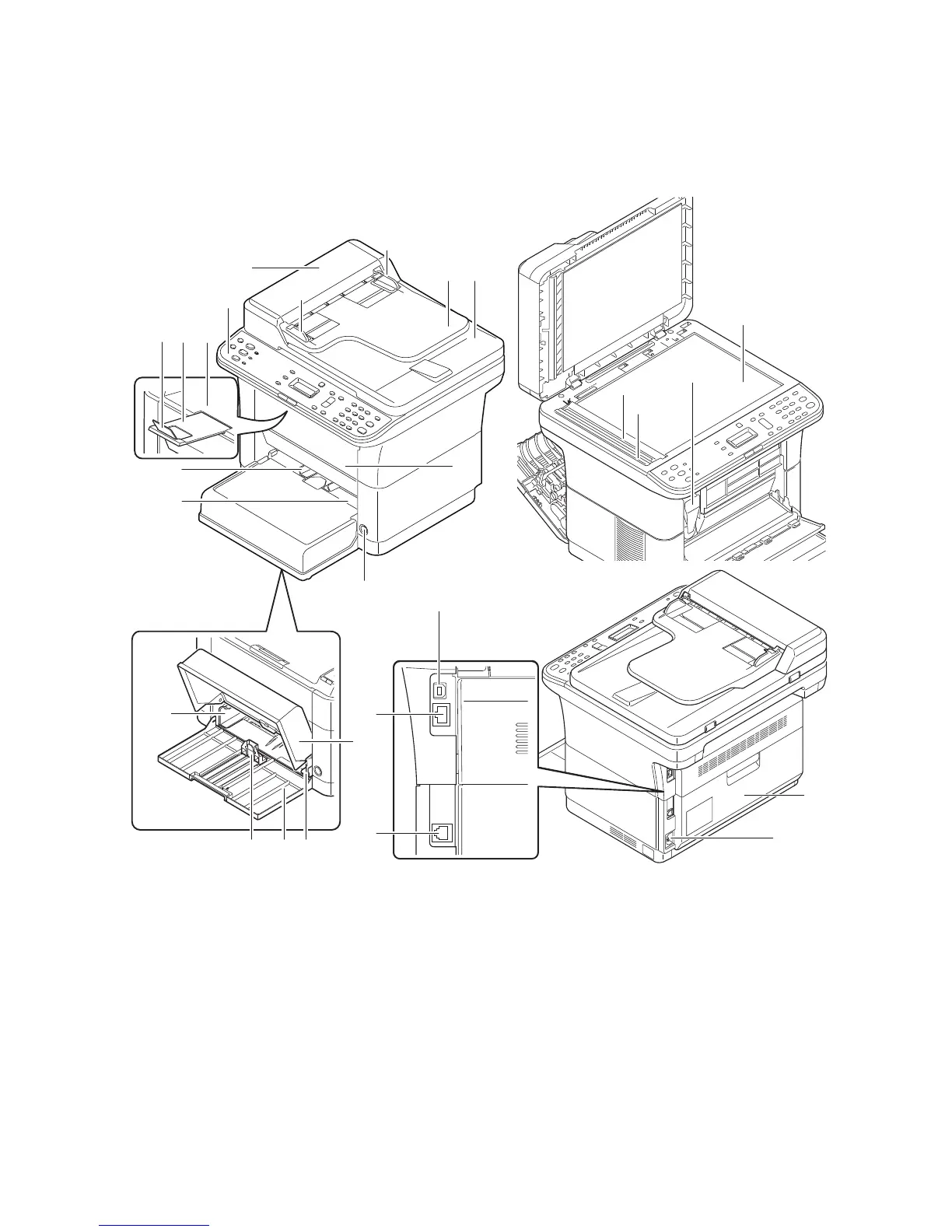

1-1-2 Parts names
(1) Machine
3 in 1 25/26 ppm model, 4 in 1 20/21, 25/26 ppm model
Figure 1-1-1
*1: 25/26 ppm model only. *2: 4 in 1 model only
6
7
8
4
13
14
15
16
17
9
10
1112
11
5
18
20 21
19
19
2
3
22
23
1
25
24
1. Top tray
2. Sub tray
3. Paper stopper
4. Operation panel
5. Power switch
6. Front cover
7. Manual feed paper width
guides*1
8. Manual feed tray*1
9. Cassette cover
10. Cassette
11. Paper width guides
12. Paper length guide
13. Rear cover
14. USB interface connector
15. Network interface connec-
tor*1
16. Power code connector
17. Line connector*2
18. DP top cover
19. Original width guides
20. Original table
21. Original eject table
22. Platen (contact glass)
23. Original size Indicator plate
24. Slit glass cover
25. Toner container

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
