Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
1-5-27
(2) Detaching and refitting the DP forward roller and DP paper feed roller
Procedure
1. Open the DP top cover.
2. Open the ribs outwards, which are used
to fix the front end of the DP feed roller
unit and remove the DP feed roller axle
from the opening in the ribs.
3. Align the D-cuts at the back of the DP
paper feed roller unit with each other
and remove the DP paper feed roller
unit from the top of the top DP cover.

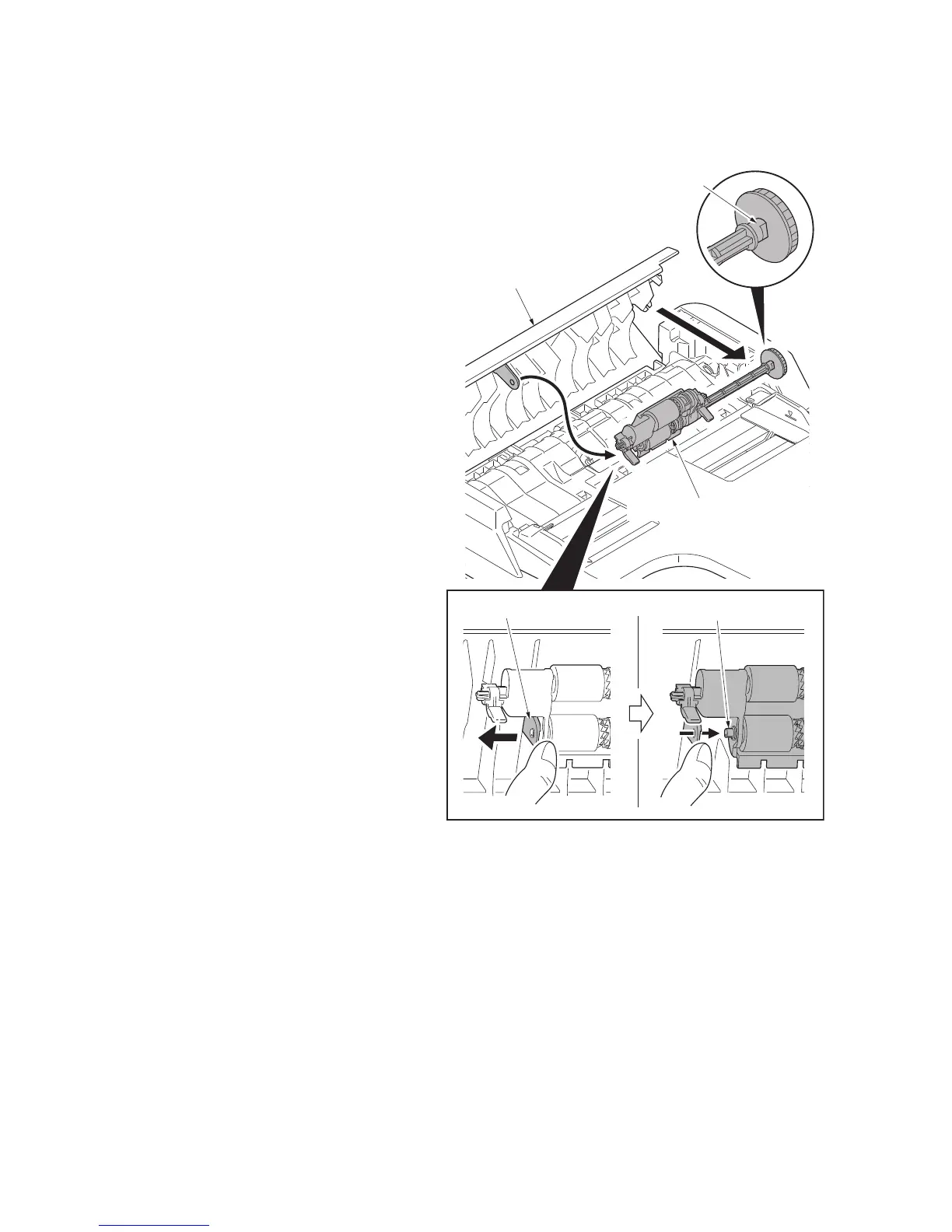

Figure 1-5-43
DP top cover
DP paper feed roller axle
DP paper feed roller unit
Rib
D-cut

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
