2-1-3 Developer section
The developer unit consists of the sleeve roller that forms the magnetic brush, the magnet roller, the devel-
oper blade and the developer screws that agitate the toner. Also, the toner sensor (TS) checks whether or not
toner remains in the toner container.

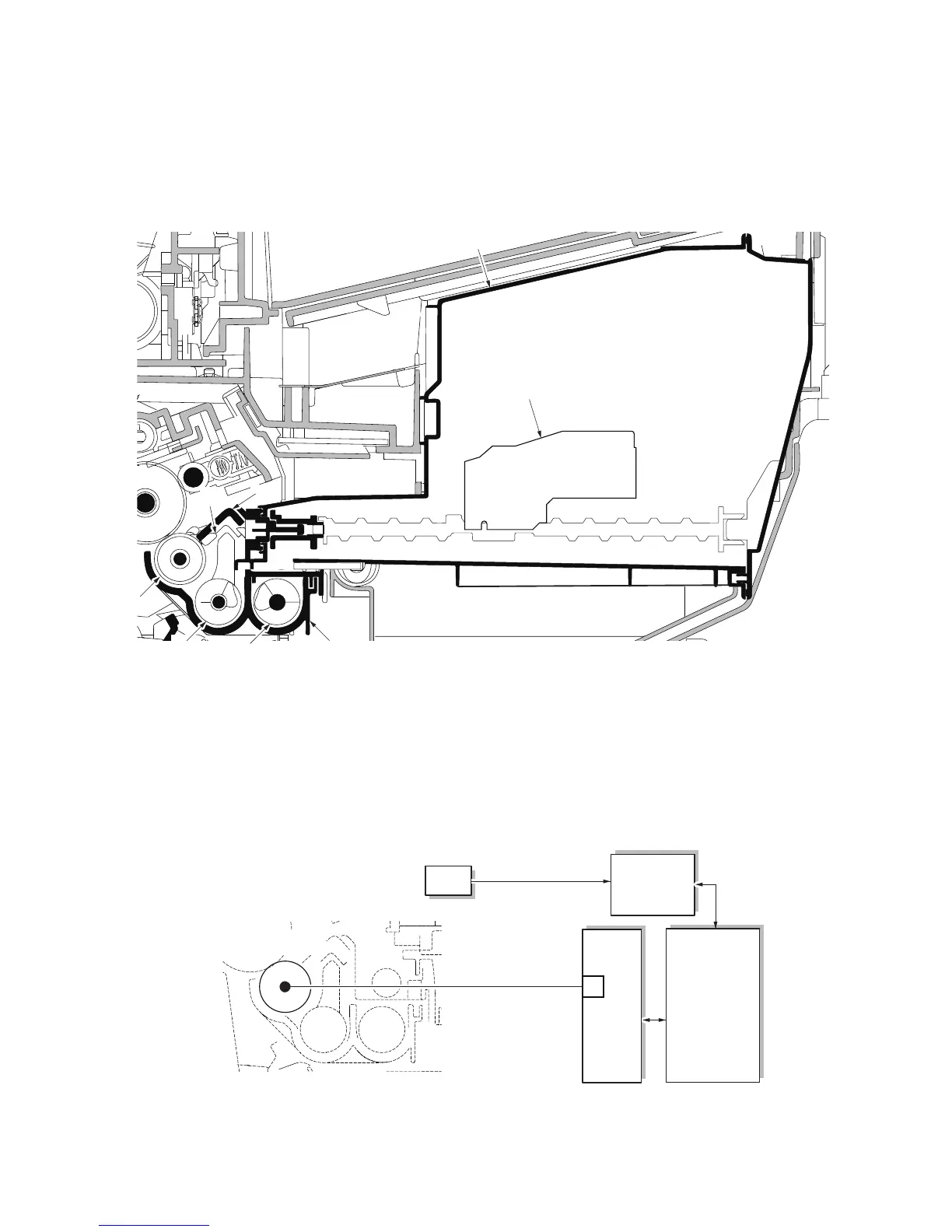

Figure 2-1-6 Developer section
.
Figure 2-1-7 Developer section block diagram
1
4
5
6
7
3
2
8
1. Developer roller
2. Developer blade
3. Blade magnet
4. Developer screw A
5. Developer screw B
6. Developer case
7. Toner container
8. Toner sensor (TS)
MPWB
HVPWB
YC13
TS
YC6-2
TONER SENSOR
RPWB
YC14
Developer unit
Developing bias
output
Developer roller
B

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
